Selection and configuration for common 3D shapes. More...

Collaboration diagram for Select Common 3d:

Files
file	select_common_3d.scad
	A standard selection and configuration scheme for common 3D shape construction.

Functions and/or Modules
module	select_common_3d_shape (type=0, argv, center=false, verb=0)
	Select configure and construct one of the available 3d shapes. More...

Usage Details

Selection and configuration for common 3D shapes.

Requires:
include <omdl-base.scad>;
include <shapes/select_common_3d.scad>;

Function and/or Module Documentation

◆ select_common_3d_shape()

module select_common_3d_shape	(	type	= `0`,
		argv	,
		center	= `false`,
		verb	= `0`
	)

Select configure and construct one of the available 3d shapes.

Parameters

type	<integer> Shape type index.
argv	<decimal-list \| decimal> Shape dependent argument vector.
center	<boolean> Center about origin.
verb	<integer> Output verbosity (0-2).

This module provides a standard scheme for selecting and configuring the arguments of most 3D shapes available in the library, offering a consistent and flexible way to include, configure, and modify 3D shapes.

argv

Each shape is configured using the parameter argv. The four elements of this parameter are as follows:

e	data type	default value	parameter description
0	decimal-list-n \| decimal	1	`size` : shape size
1	decimal-list-n \| decimal	undef	`vr` (`sr`) : shape rounding
2	integer-list-n \| integer	0	`vrm` : shape rounding mode
3	integer	5	`fn` : shape rounding facets
4	integer	0	shape modifier

argv[4]: shape modifier

v	modifier description
0	none

type

Dimensioning is shape dependent. The required dimensioning arguments for each supported shape are shown in the following table. All supported shapes and their associated arguments are summarized in the following table:

standard shape types

t	shapes	parameters	shape reference
1	cylinder	h, r1, r2	cylinder()
2	cone	size	cone()
3	cuboid	size	cuboid()
4	ellipsoid	size	ellipsoid()
5	ellipsoid section	size, a1, a2	ellipsoid_s()
6	quadratic pyramid	size	pyramid_t()
7	triangular pyramid	size	pyramid_q()
8	star 3d	size, n, half	star3d()
100+	Polyhedrons database	size	(see below)

Selection example script

    include <omdl-base.scad>;
    include <shapes/select_common_3d.scad>;

    r     = 25;
    h     = 25;

    size  = [r, h];
    a1    = 0;
    a2    = 225;

    type  = 5;
    argv  = [[size, a1, a2]];

    select_common_3d_shape(type=type, argv=argv, center=true);

    // end_include

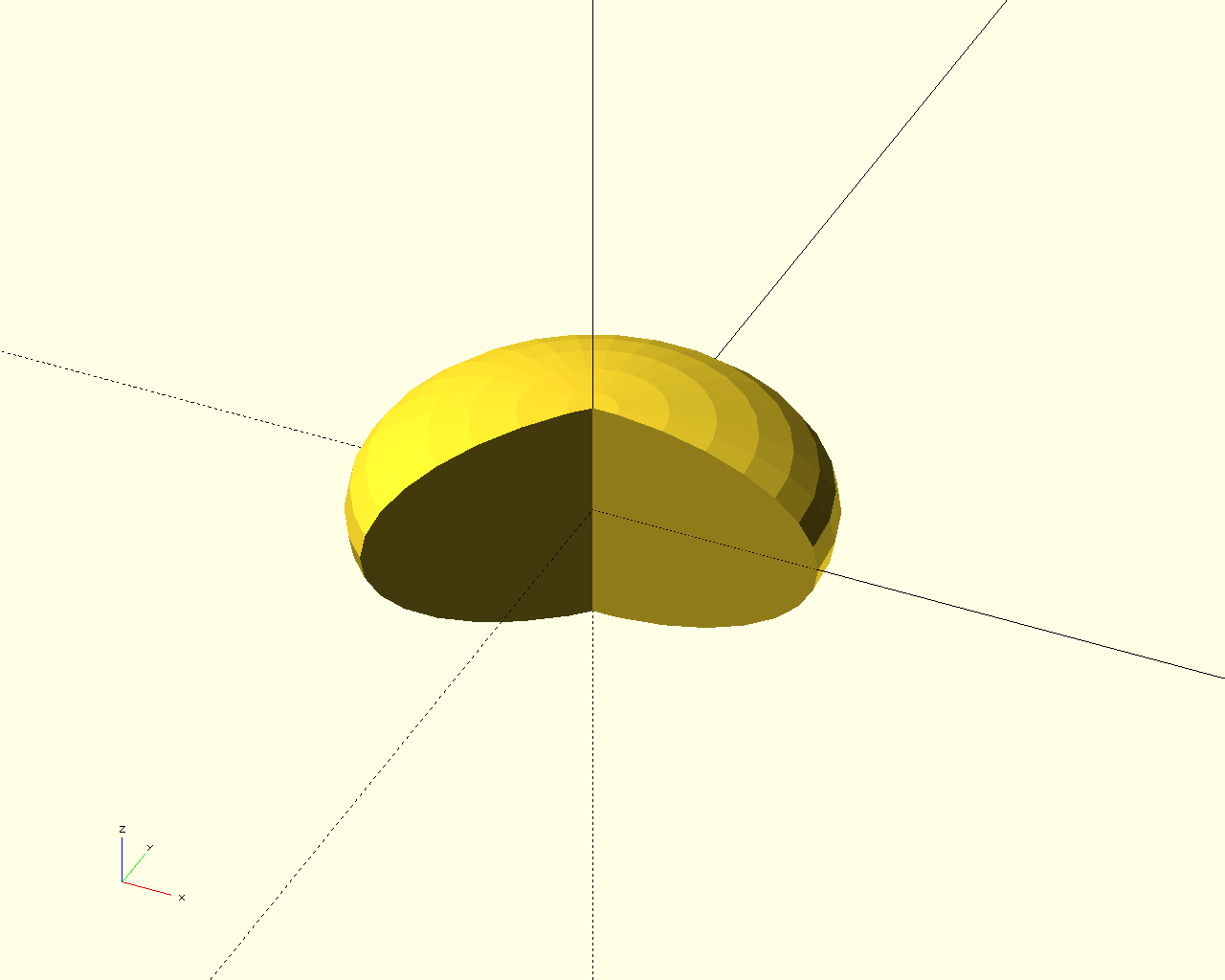

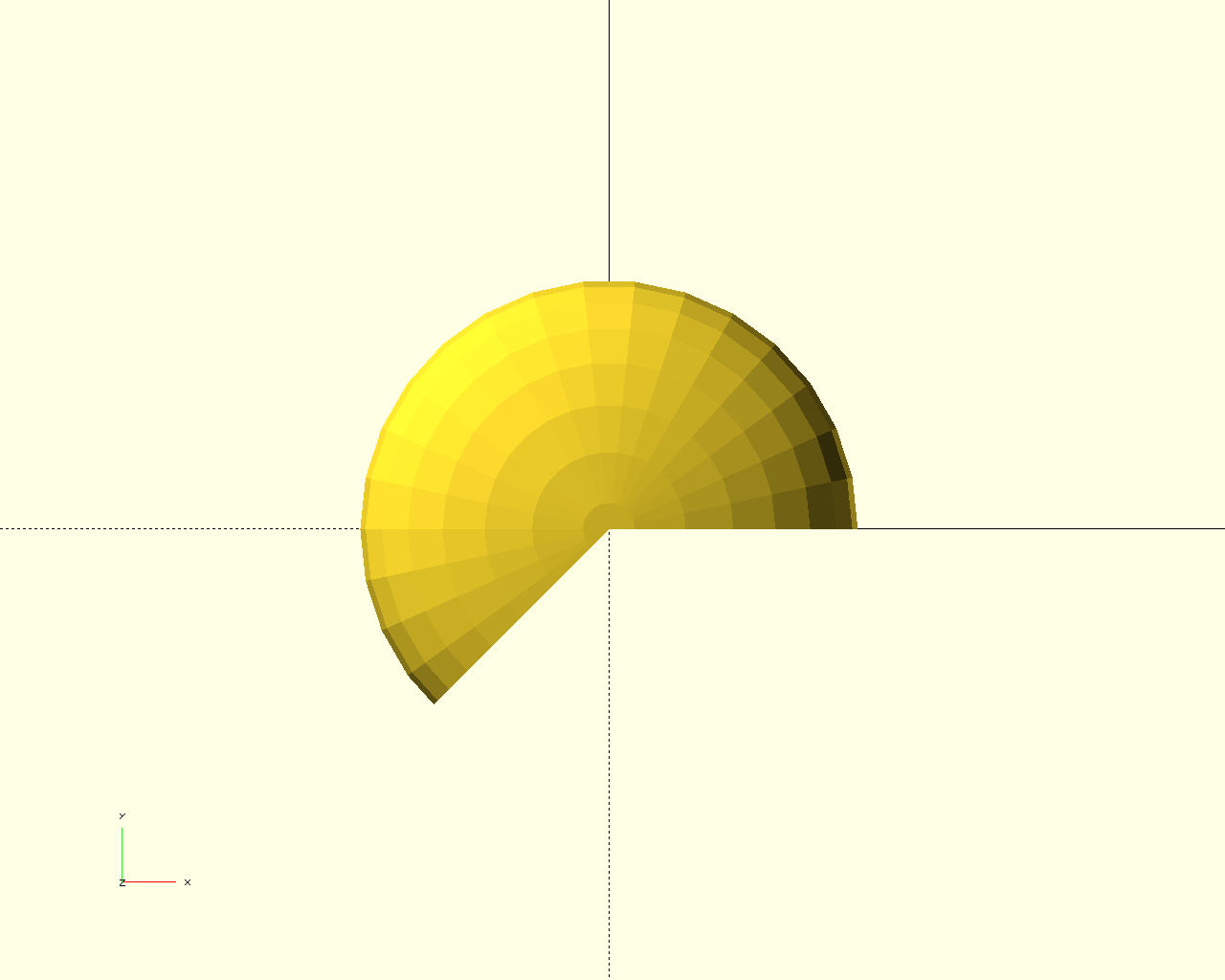

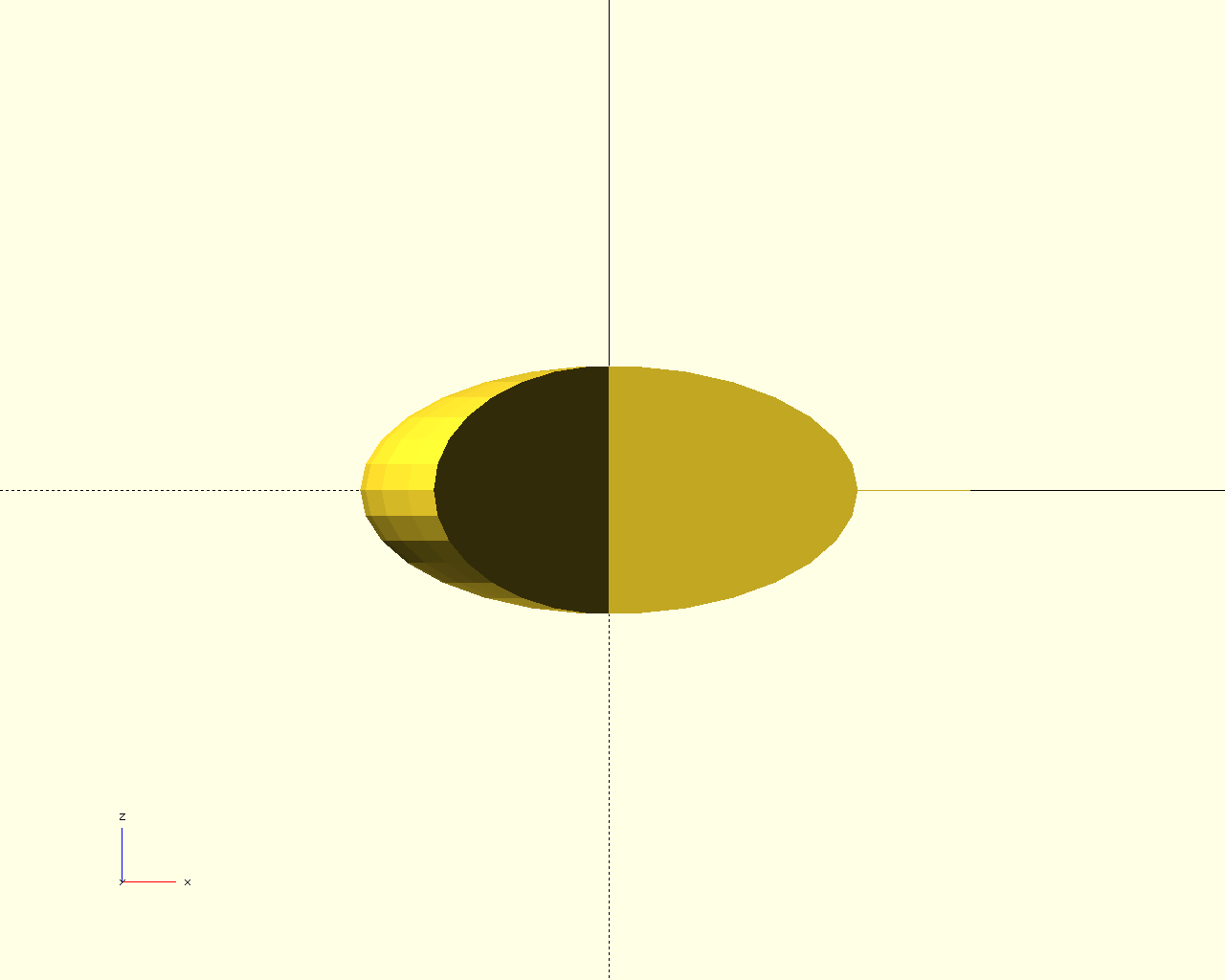

Selection example diagram
top	front	diag

custom shape types

t	shapes	parameters	function invocation name
50	custom shape 1	size	`select_common_3d_shape_50()`
51	custom shape 2	size	`select_common_3d_shape_51()`
52	custom shape 3	size	`select_common_3d_shape_52()`
53	custom shape 4	size	`select_common_3d_shape_53()`
54	custom shape 5	size	`select_common_3d_shape_54()`

User-defined custom shape functions can be selected by defining a shape function using one of the reserved custom shape function names, and then referencing the corresponding shape type listed in the table above. The custom function prototype and an example is provided below.

Prototype:

// custom shape module, type 50

module select_common_3d_shape_50(size, vr, vrm, fn, center)
{

};

Custom shape example script

    include <omdl-base.scad>;
    include <shapes/select_common_3d.scad>;

    module select_common_3d_shape_50(size, vr, vrm, fn, center)
    {
      cube(size, center=center);
    }

    size  = [50, 40, 30];
    vr    = undef;
    vrm   = undef;
    fn    = undef;

    type  = 50;
    argv  = [size, vr, vrm, fn];

    select_common_3d_shape(type=type, argv=argv, center=true);

    // end_include

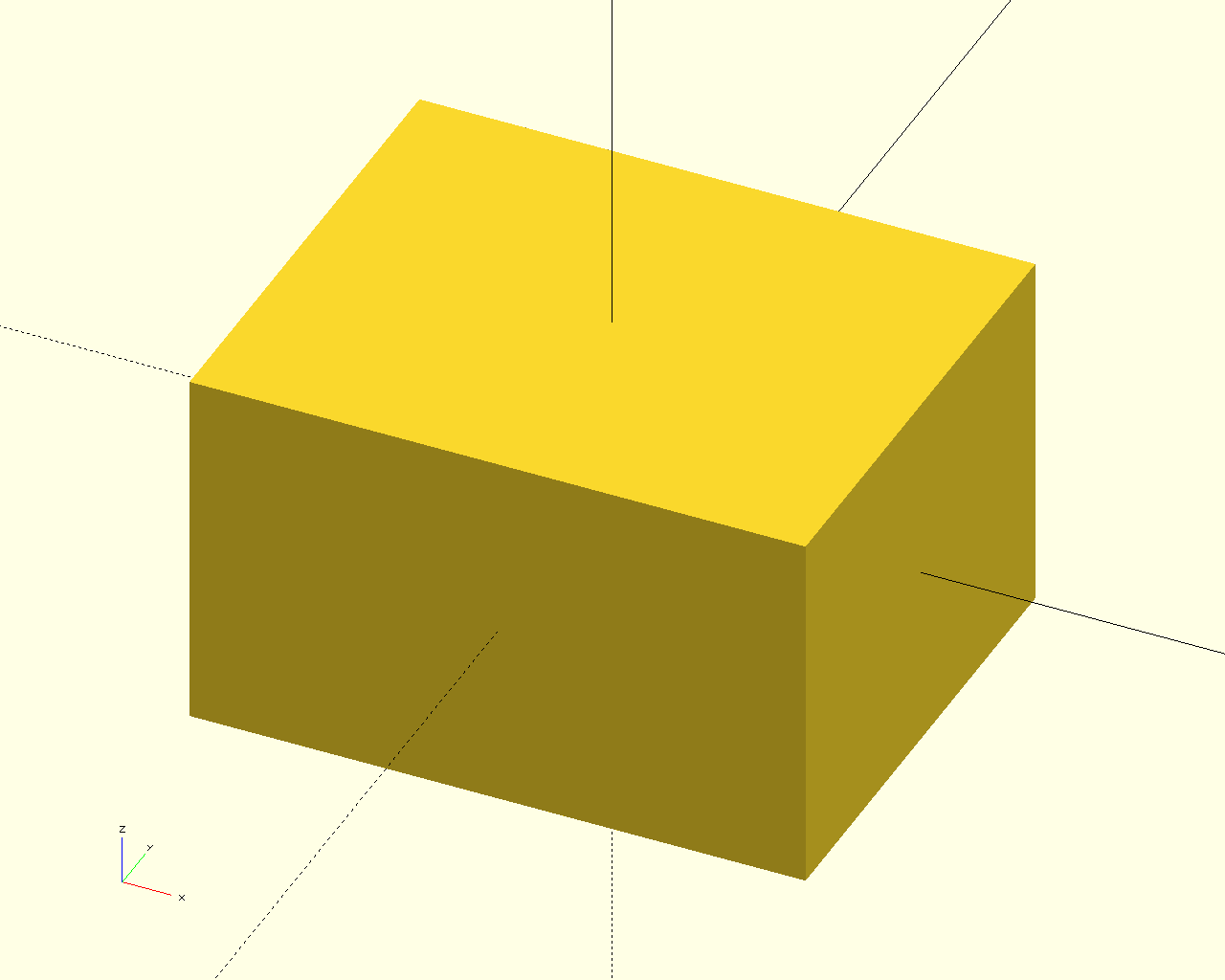

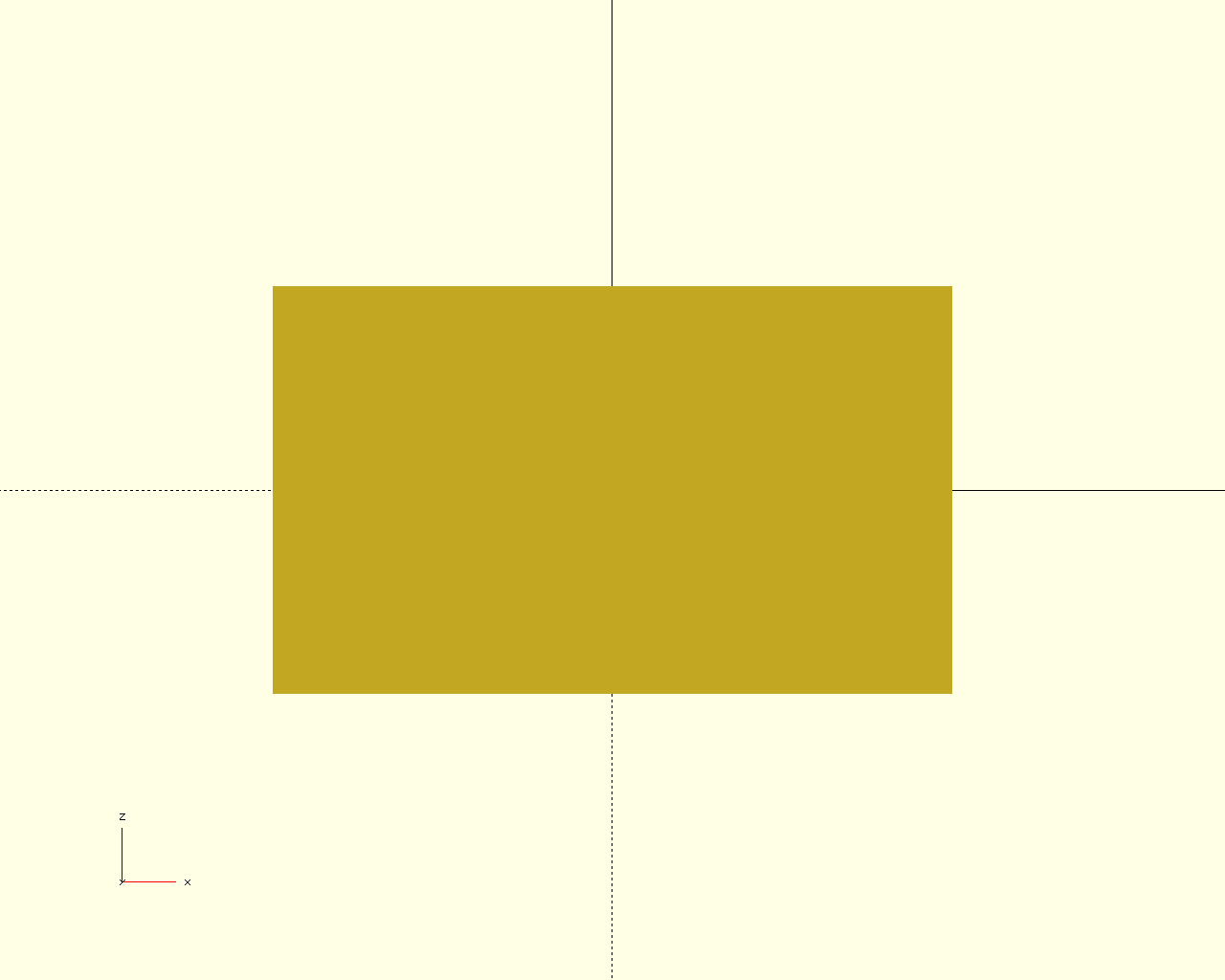

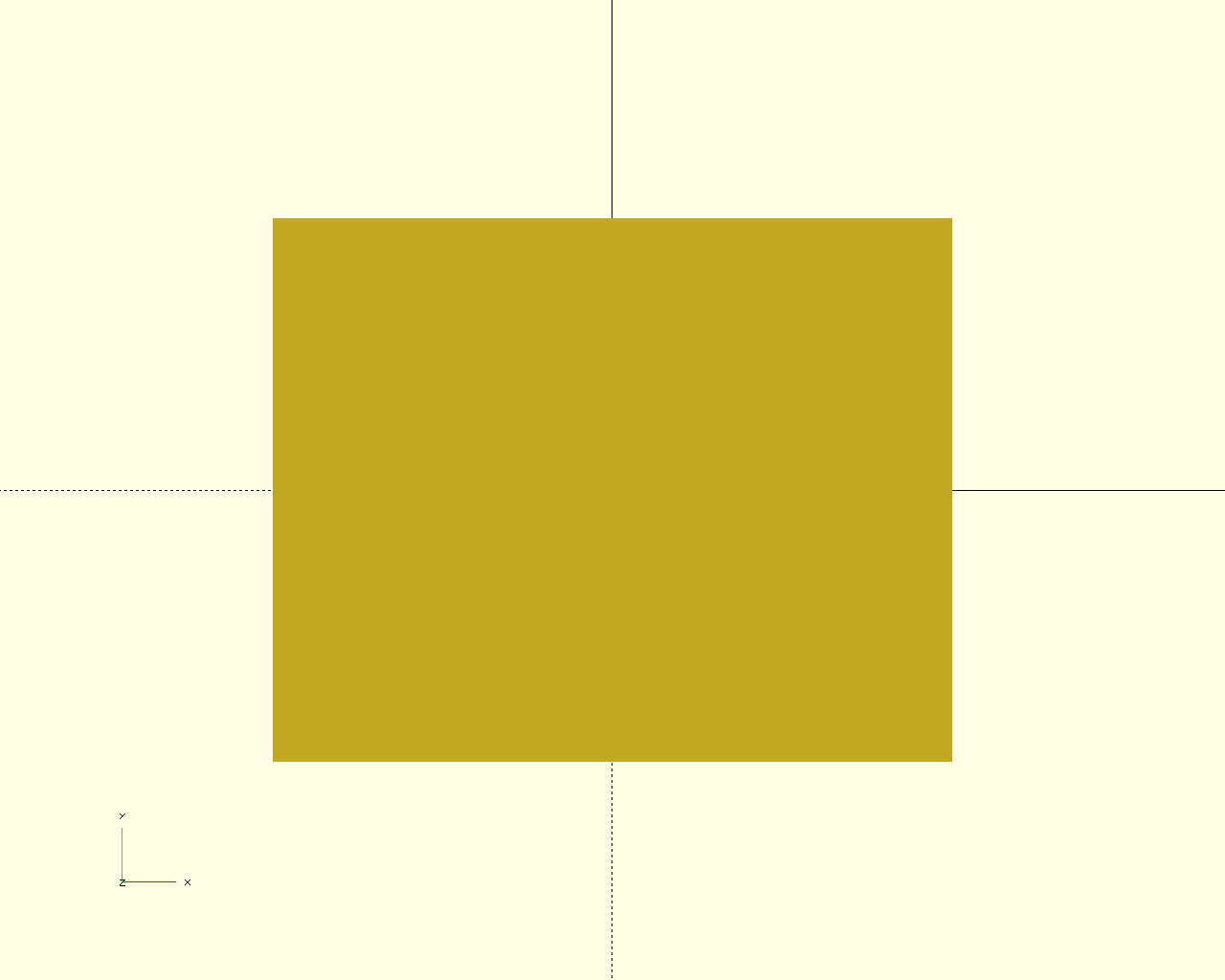

Custom shape example diagram
top	front	diag

Polyhedrons database inclusion

Requires:
include <omdl-base.scad>;
include <database/geometry/polyhedra/polyhedra_all.scad>;
include <shapes/polyhedron_db.scad>;
include <shapes/select_common_3d.scad>;

Polyhedra available through ph_db_polyhedron() may also be included in the 3d shape selection options. These shapes are accessible when the ph_db_polyhedron() module is included as shown under ‘Requires:’ above. As described in its documentation, a polyhedron database must also be included. In this example below, the polyhedra_all database is used; however, a smaller database may be configured instead, as described in the ph_db_polyhedron() documentation.

Polyhedrons database selection example script

    include <omdl-base.scad>;
    include <database/geometry/polyhedra/polyhedra_all.scad>;
    include <shapes/polyhedron_db.scad>;
    include <shapes/select_common_3d.scad>;

    size  = [10, 20, 20];
    type  = 122;
    argv  = [size];

    select_common_3d_shape(type=type, argv=argv, center=true);

    // end_include

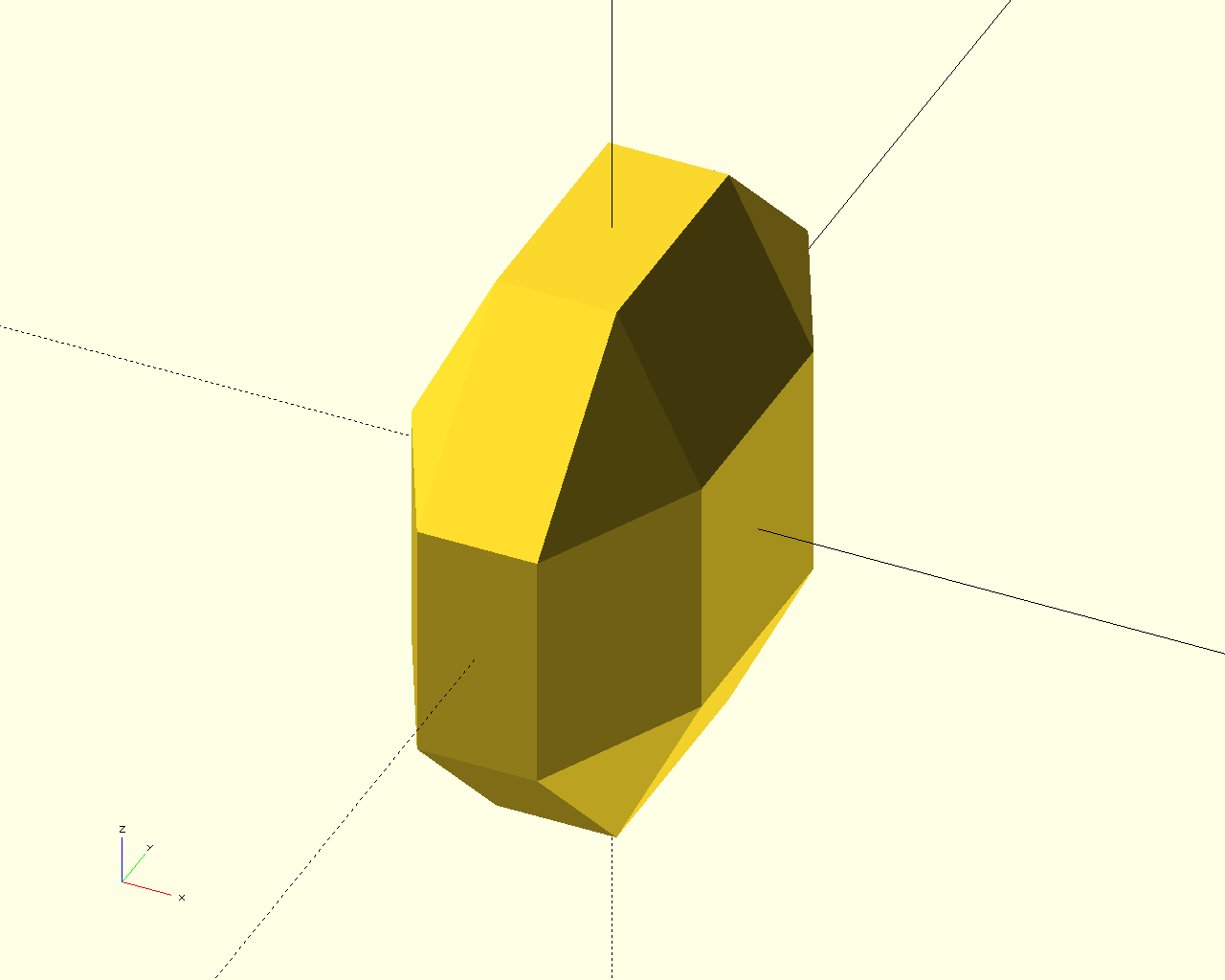

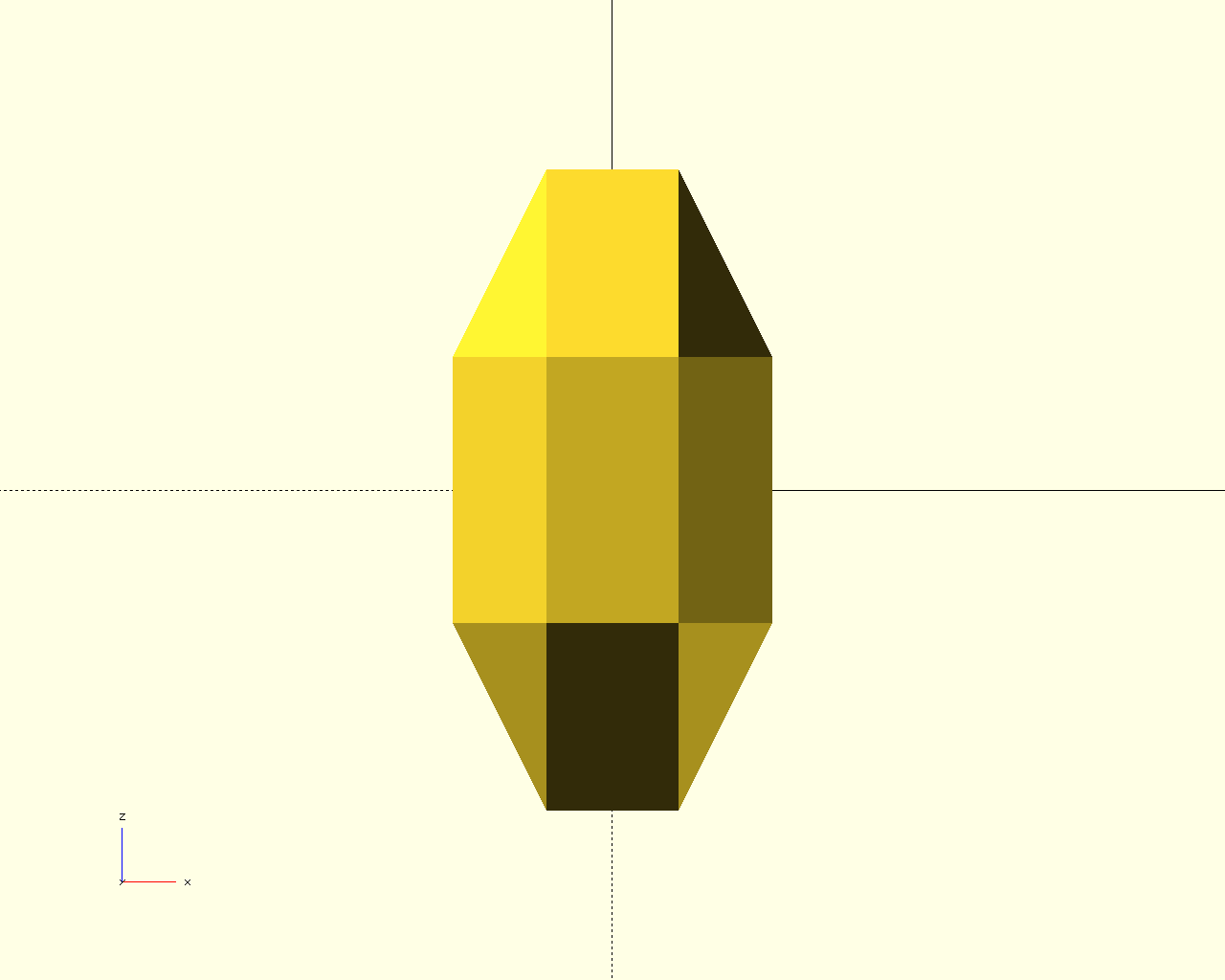

Polyhedrons database selection example diagram
top	front	diag

Definition at line 809 of file select_common_3d.scad.
