Polyhedrons db

Sizable polyhedra generated from shape database. More...

Collaboration diagram for Polyhedrons db:

Files
file	polyhedron_db.scad
	Sizable polyhedra generated from shape database.

Functions and/or Modules
function	ph_db_get_size (tr=ph_db_dtr)
	Get the number of shape identifiers in data table. More...
function	ph_db_get_id (n, tr=ph_db_dtr)
	Get data table identifier name (or names). More...
module	ph_db_polyhedron (id, size, align, tr=ph_db_dtr, tc=ph_db_dtc)
	Construct a named polyhedron. More...

Variables
	ph_db_dtc = dtc_polyhedra_polyhedra_all
	<map> The default polyhedra data table columns.
	ph_db_dtr = dtr_polyhedra_polyhedra_all
	<table> The default polyhedra data table rows.

Usage Details

Sizable polyhedra generated from shape database.

Requires:
include <omdl-base.scad>;
include <database/geometry/polyhedra/polyhedra_all.scad>;
include <shapes/polyhedron_db.scad>;

To work with a smaller polyhedra data set, include the specific table of interest rather than polyhedra_all.scad, as shown in the following example. For a list of those available, see the polyhedra database section.

Here is an example that uses a limited set.

Cupolas example script

    include <omdl-base.scad>;
    include <database/geometry/polyhedra/cupolas.scad>;
    include <shapes/polyhedron_db.scad>;

    ph_db_dtc = dtc_polyhedra_cupolas;
    ph_db_dtr = dtr_polyhedra_cupolas;

    gx = ceil( sqrt( ph_db_get_size() ) );
    gy = gx;

    sx = 2.25;
    sy = sx;

    for ( i = [ 1 : ph_db_get_size() ] )
      translate([sx * (i%gx), sy * (floor(i/gx)%gy), 0])
        rotate([90, 0, 0])
          ph_db_polyhedron( id=ph_db_get_id(i) );

    // end_include

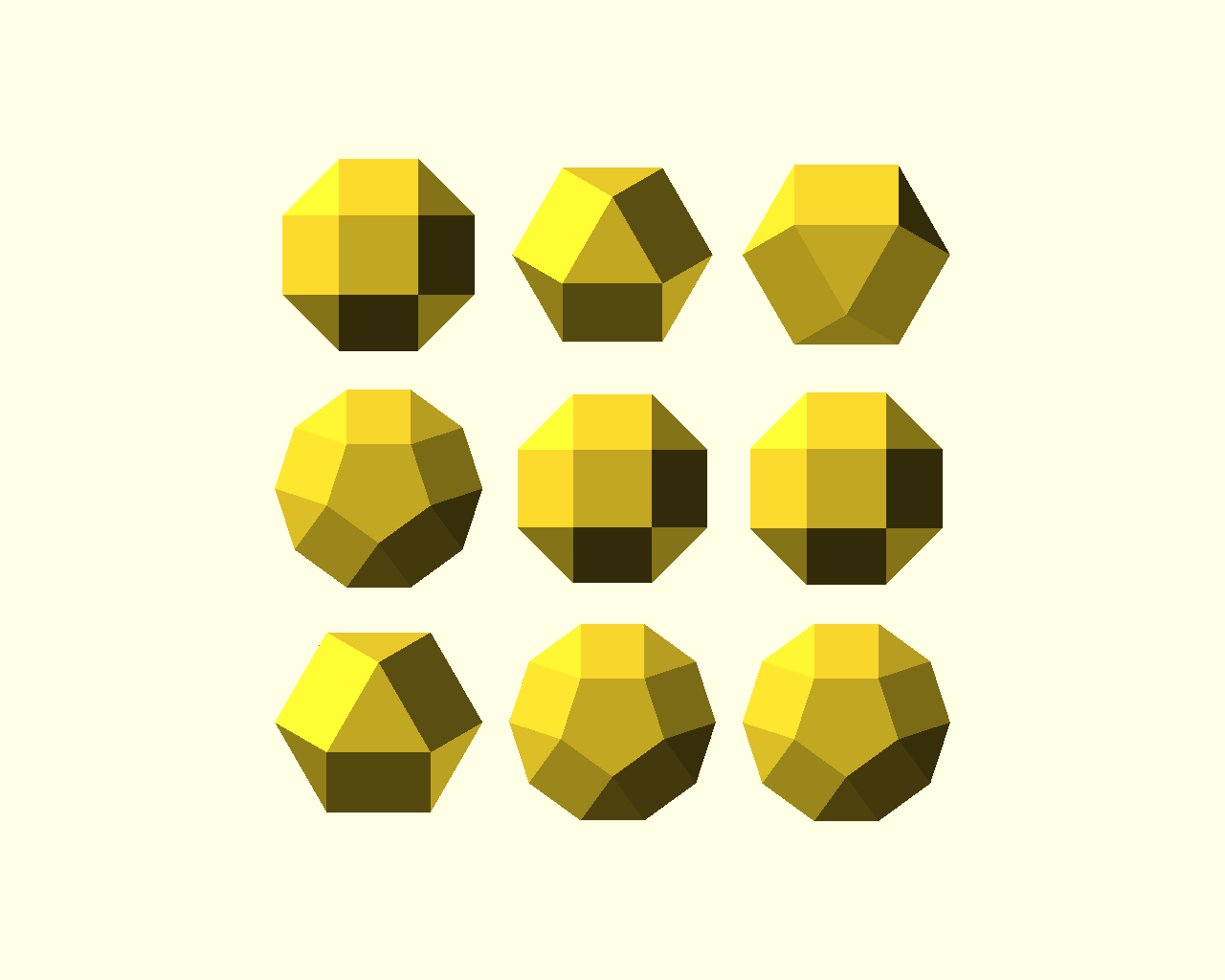

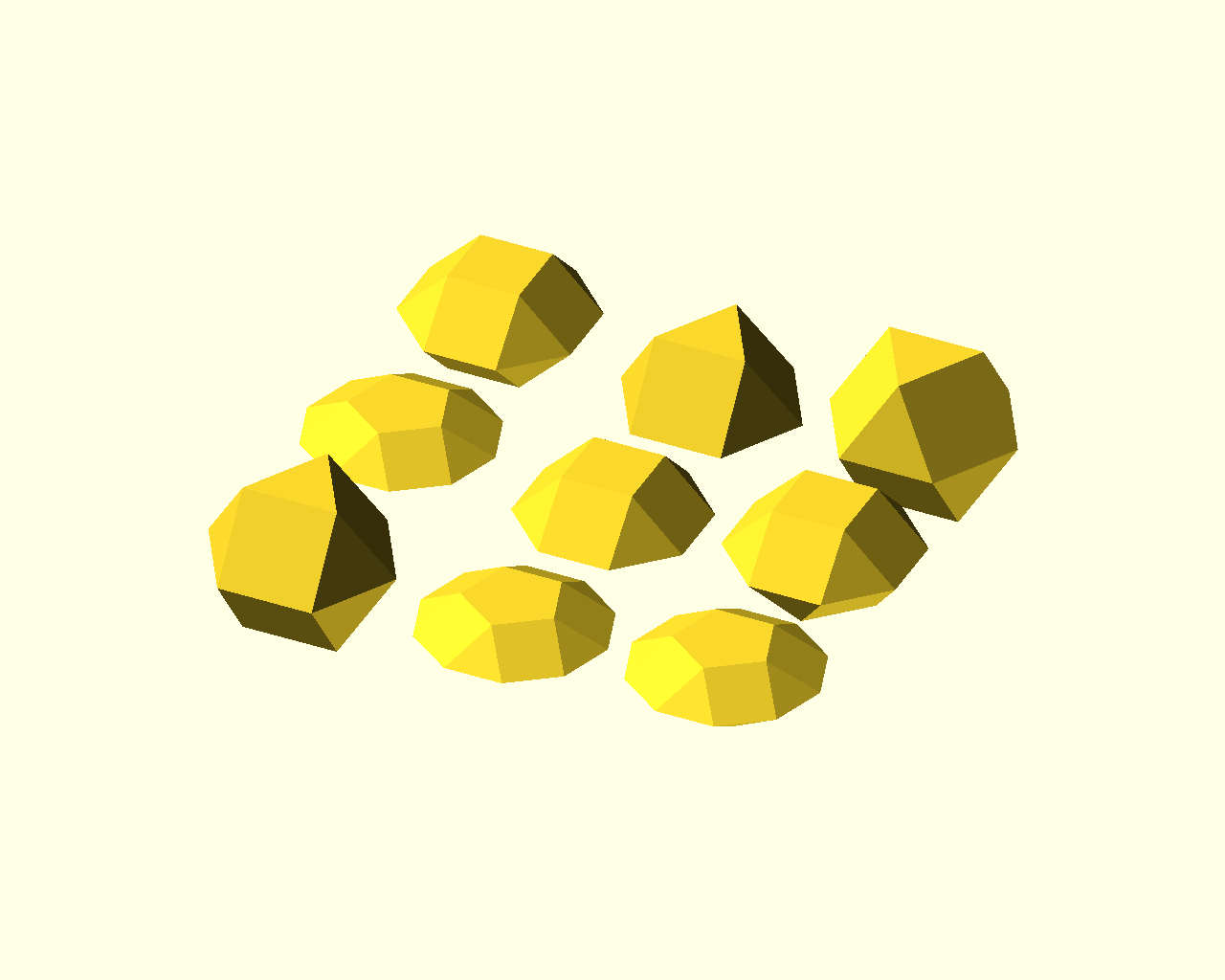

Cupolas example diagram

top	bottom	diag

Function and/or Module Documentation

ph_db_get_size()

function ph_db_get_size

(

tr

= ph_db_dtr

)

Get the number of shape identifiers in data table.

Parameters

tr	<table> The polyhedra data table rows.

Returns

<integer> The total number of identifiers

Here is the caller graph for this function:

ph_db_get_id()

function ph_db_get_id	(	n	,
		tr	= ph_db_dtr
	)

Get data table identifier name (or names).

Parameters

n	<integer> An index number.
tr	<table> The polyhedra data table rows.

Returns

<string | string-list> The identifier name at index n or the list of all identifier names for n = 0.

Identifiers numbering start from 1 and end at ph_db_get_size().

Here is the caller graph for this function:

ph_db_polyhedron()

module ph_db_polyhedron	(	id	,
		size	,
		align	,
		tr	= ph_db_dtr,
		tc	= ph_db_dtc
	)

Construct a named polyhedron.

Parameters

id	<string> The polyhedron identifier name.
size	<decimal-list-3 | decimal> A list [x, y, z] of decimals or a single decimal for (x=y=z).
align	<decimal-list-3 | decimal> A list [x, y, z] of decimals or a single decimal for (x=y=z).
tr	<table> The polyhedra data table rows.
tc	<map> The polyhedra data table columns.

The polyhedron is constructed at the origin and can be repositioned using align. Each axis is aligned independently, with 0 indicating the center, +1 the positive bounds, and -1 the negative bounds. Fractional alignments and alignment values with magnitudes greater than 1 are also supported.

align	value description
0	align at bounding box center
-1	align axis at lower shape bounds
+1	align axis at upper shape bounds

Using this module, polyhedron can be incorporated into designs as shown in this simple example.

Design example script

    include <omdl-base.scad>;
    include <database/geometry/polyhedra/johnson.scad>;
    include <shapes/polyhedron_db.scad>;

    ph_db_dtc = dtc_polyhedra_johnson;
    ph_db_dtr = dtr_polyhedra_johnson;

    $fn = 5;

    // shape sizes
    h1 = 1; s1 = [10, h1, 10];
    h2 = 5; s2 = 2;
    h3 = 3; s3 = [15, h3, 15];

    translate([0, 0, h1])
    {
      rotate([90,0,0])
      ph_db_polyhedron( id=ph_db_get_id(65), size=s1, align=[0,-1,0] );

      rotate(-360/4/$fn)
      cylinder(r=s2, h=h2);

      translate([0, 0, h2]) mirror([0,0,1]) rotate([90,0,0])
      ph_db_polyhedron( id=ph_db_get_id(41), size=s3, align=[0,-1,0] );
    }

    // end_include

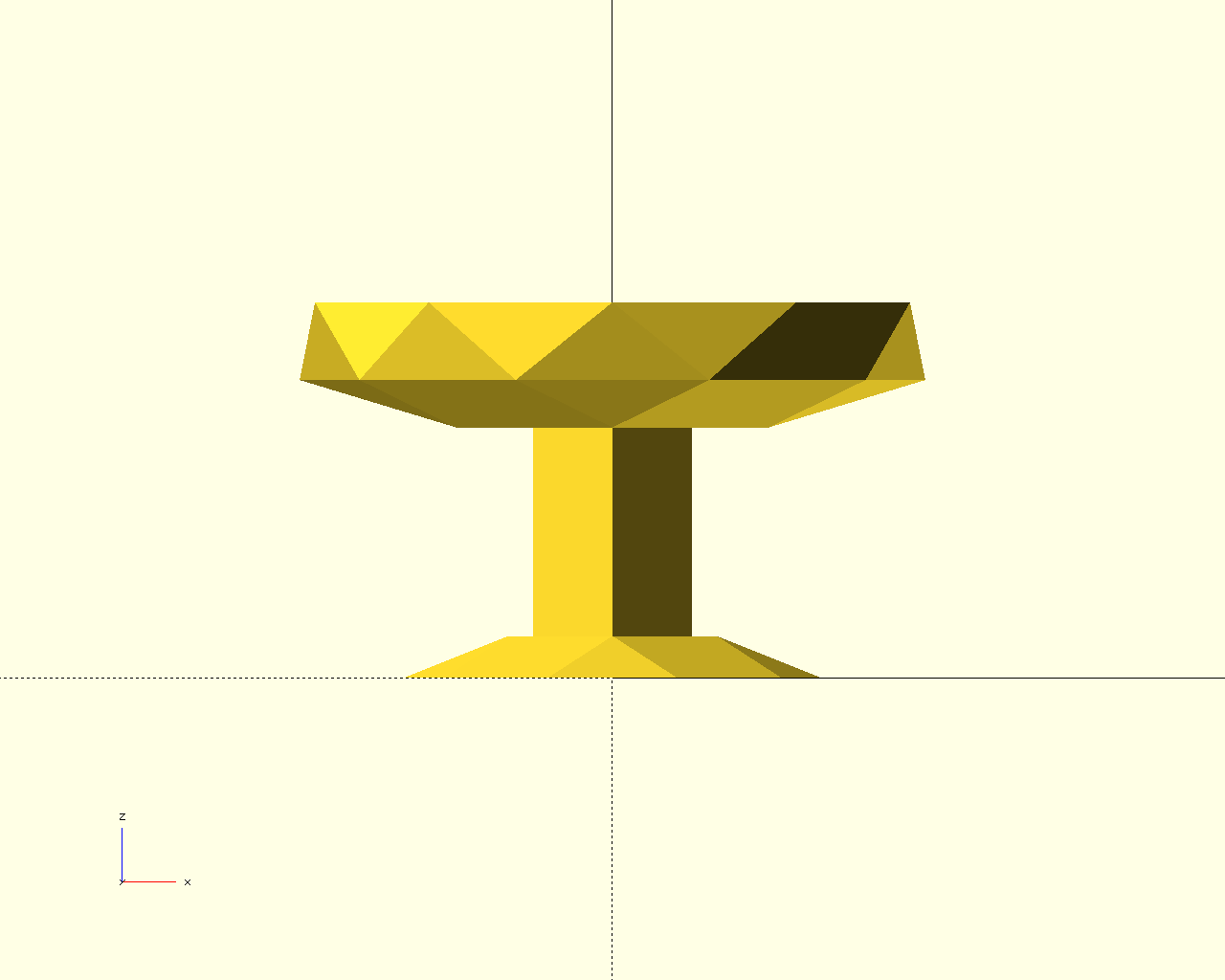

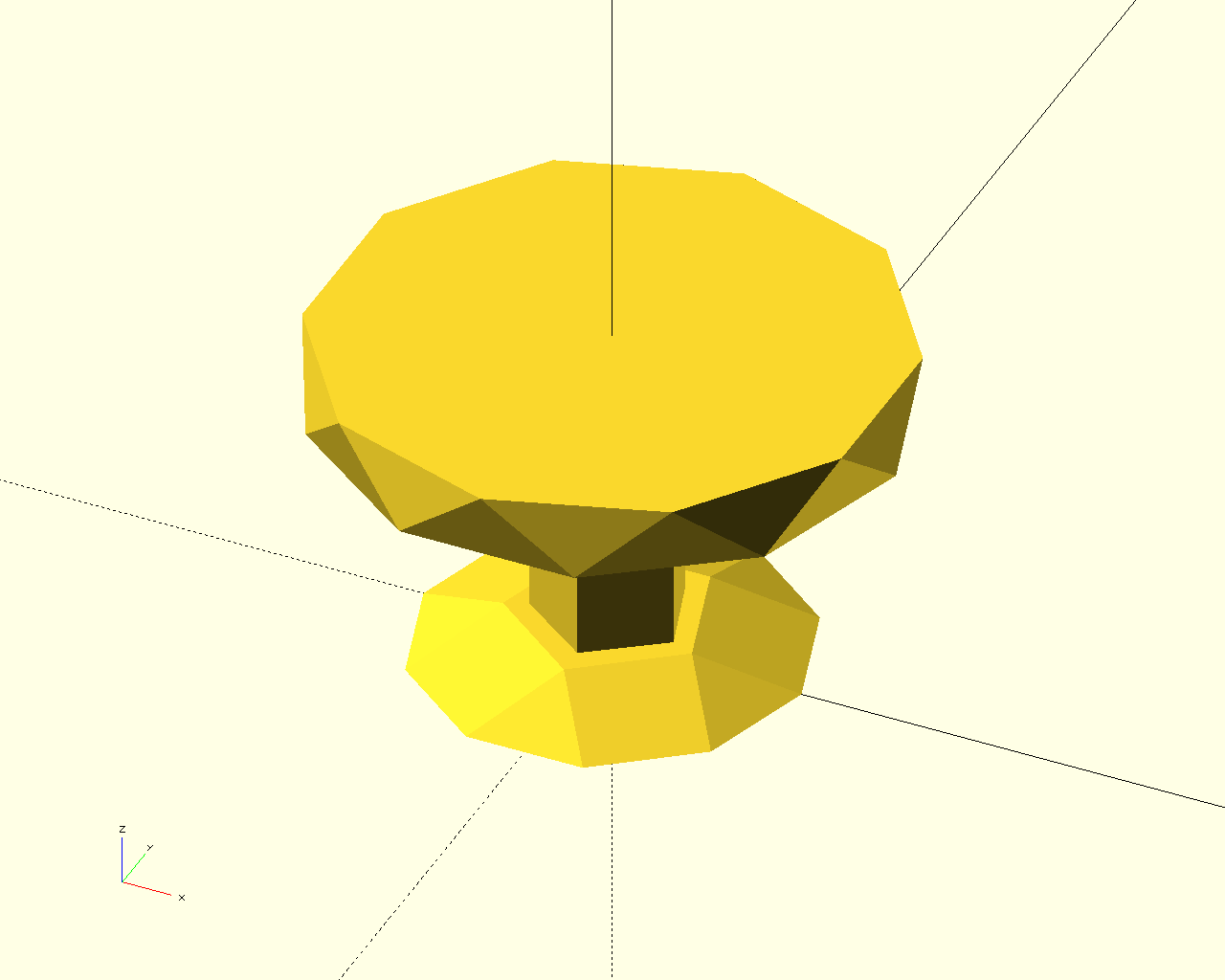

Design example diagram

front	diag

Definition at line 554 of file polyhedron_db.scad.

Here is the call graph for this function:

Here is the caller graph for this function:
