Common 3d

Common 3D shapes. More...

Collaboration diagram for Common 3d:

Files
file	common_3d.scad
	Common 3D shapes.

Functions and/or Modules
module	cone (size=1, vr, center=false)
	A cone. More...
module	cuboid (size=1, vr, vrm=0, center=false)
	A cuboid with edge, round, or chamfer corners. More...
module	ellipsoid (size=1, center=false)
	An ellipsoid. More...
module	ellipsoid_s (size=1, a1=0, a2=0, center=false)
	A sector of an ellipsoid. More...
module	pyramid_t (size=1, center=false)
	A pyramid with trilateral base formed by four equilateral triangles. More...
module	pyramid_q (size=1, center=false)
	A pyramid with quadrilateral base. More...
module	star3d (size=1, n=5, half=false, center=false)
	A three-dimensional star. More...

Usage Details

Common 3D shapes.

Requires:
include <omdl-base.scad>;

Common 3d

I	II	III
cone()	cuboid()	ellipsoid()
IV	V	VI
ellipsoid_s()	pyramid_q()	pyramid_t()
VII
star3d()

Function and/or Module Documentation

cone()

module cone	(	size	= 1,
		vr	,
		center	= false
	)

A cone.

Parameters

size	<decimal-list-2 | decimal> A list [r, h] of decimals or a single decimal for (r=h).
vr	<decimal-list-2 | decimal> A list [rb, rp] of decimals or a single decimal for (rb=rp]. The corner rounding radius.
center	<boolean> Center about origin.

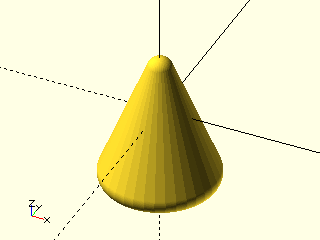

Object example

      cone( [10, 25], vr=2, center=true );

cone

Definition at line 460 of file common_3d.scad.

Here is the call graph for this function:

Here is the caller graph for this function:

cuboid()

module cuboid	(	size	= 1,
		vr	,
		vrm	= 0,
		center	= false
	)

A cuboid with edge, round, or chamfer corners.

Parameters

size	<decimal-list-3 | decimal> A list [x, y, z] of decimals or a single decimal for (x=y=z).
vr	<decimal> The corner rounding radius.
vrm	<integer> The radius mode. A 2-bit encoded integer that indicates edge and vertex finish. B0 controls edge and B1 controls vertex.
center	<boolean> Center about origin.

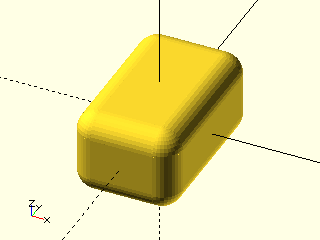

Object example

      cuboid( size=[25,40,20], vr=5, center=true );

cuboid

vrm	Description
0	round edges with round vertexes
1	chamfer edges with sphere vertexes
2	round edges with chamfer vertexes
3	chamfer edges with chamfer vertexes

Note

Using round replaces all edges with a quarter circle of radius vr, inset [vr, vr] from the each edge.

Using chamfer replaces all edges with isosceles right triangles with side lengths equal to the corner rounding radius vr. Therefore the chamfer length will be vr * sqrt(2) at 45 degree angles.

Definition at line 530 of file common_3d.scad.

Here is the call graph for this function:

Here is the caller graph for this function:

ellipsoid()

module ellipsoid	(	size	= 1,
		center	= false
	)

An ellipsoid.

Parameters

size	<decimal-list-2 | decimal> A list [r, h] of decimals or a single decimal for (2r=h).
center	<boolean> Center about origin.

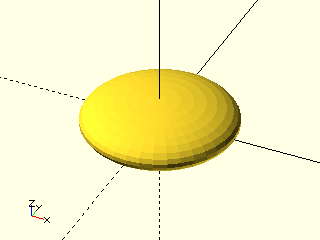

Object example

      ellipsoid( size=[40,25], center=true );

ellipsoid

Definition at line 621 of file common_3d.scad.

Here is the call graph for this function:

Here is the caller graph for this function:

ellipsoid_s()

module ellipsoid_s	(	size	= 1,
		a1	= 0,
		a2	= 0,
		center	= false
	)

A sector of an ellipsoid.

Parameters

size	<decimal-list-2 | decimal> A list [r, h] of decimals or a single decimal for (2r=h).
a1	<decimal> The start angle in degrees.
a2	<decimal> The stop angle in degrees.
center	<boolean> Center about origin.

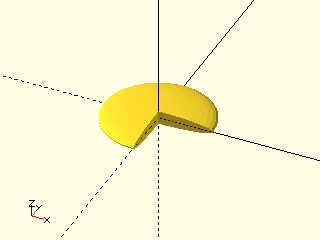

Object example

      ellipsoid_s( size=[60,15], a1=0, a2=270, center=true );

ellipsoid_s

Definition at line 662 of file common_3d.scad.

Here is the call graph for this function:

Here is the caller graph for this function:

pyramid_t()

module pyramid_t	(	size	= 1,
		center	= false
	)

A pyramid with trilateral base formed by four equilateral triangles.

Parameters

size	<decimal> The face radius.
center	<boolean> Center about origin.

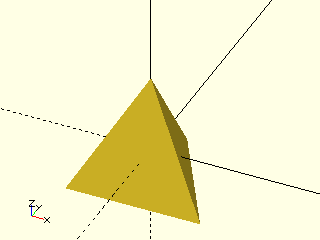

Object example

      pyramid_t( size=20, center=true );

pyramid_t

Definition at line 724 of file common_3d.scad.

Here is the call graph for this function:

Here is the caller graph for this function:

pyramid_q()

module pyramid_q	(	size	= 1,
		center	= false
	)

A pyramid with quadrilateral base.

Parameters

size	<decimal-list-3 | decimal> A list [x, y, z] of decimals or a single decimal for (x=y=z).
center	<boolean> Center about origin.

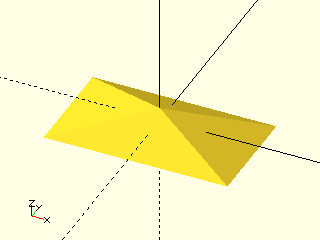

Object example

      pyramid_q( size=[35,20,5], center=true );

pyramid_q

Definition at line 771 of file common_3d.scad.

Here is the call graph for this function:

Here is the caller graph for this function:

star3d()

module star3d	(	size	= 1,
		n	= 5,
		half	= false,
		center	= false
	)

A three-dimensional star.

Parameters

size	<decimal-list-3 | decimal> A list [l, w, h] of decimals or a single decimal for (size=l=2*w=4*h).
n	<decimal> The number of points.
half	<boolean> Render upper half only.
center	<boolean> Center about origin.

Object example

      star3d( size=40, n=5, half=true, center=true );

star3d

Definition at line 823 of file common_3d.scad.

Here is the call graph for this function:

Here is the caller graph for this function:
