Layout

Ordered sequences of geometric transforms as a single composite operation. More...

Collaboration diagram for Layout:

Files
file	layout.scad
	Ordered sequences of geometric transforms as a single composite operation.

Functions and/or Modules
module	layout_grid_p (t, s, b=zero3d, mode=0, verb=0)
	A transform sequence to place a child shape. More...
module	layout_grid_rp (t, s, b=zero3d, center=false, mode=0, verb=0)
	A transform sequence to replicate and place a child shape. More...

Usage Details

Ordered sequences of geometric transforms as a single composite operation.

Requires:
include <omdl-base.scad>;
include <transforms/layout.scad>;

Function and/or Module Documentation

layout_grid_p()

module layout_grid_p	(	t	,
		s	,
		b	= zero3d,
		mode	= 0,
		verb	= 0
	)

A transform sequence to place a child shape.

Parameters

t	<datastuct> The transform sequence configuration (see below).
s	<integer | integer-list | range> The optional child object selection(s).
b	<decimal-list-2:3> The placement reference region (bounding box).
mode	<integer> Modifier mode.
verb	<integer> Console output verbosity.

This module performs an ordered sequence of geometric transforms as a single composite operation. Using a transformation configuration list, child objects may be translated, rotated, mirrored, and placed as specified in the table below.

This function is a simplified version of layout_grid_rp() that omits child replication functionality.

An optional bounding box region may be defined to provide a reference frame for layout placement. The layout—also referred to as the bounding box—serves as a positional guide only; placements may extend beyond this region if desired.

Multi-value and structured parameters

t

The transform sequence is specified as a configuration list with the elements described below. The operation supports both 2D and 3D modes. The configuration list does not need to be fully specified; any unspecified elements are automatically assigned the default values shown in the table.

e	data type	3D default	2D default	scalar updates	parameter description
0	integer	mode	mode	-	layout modifier mode
1	decimal-list-2:3 | decimal	[0,0,0]	[0,0]	x	layout placement
2	integer-list-2:3 | integer	[0,0,0]	[0,0]	x	child mirror
3	decimal-list-2:3 | decimal	0	0	z	child rotate
4	decimal-list-2:3 | decimal	[0,0,0]	[0,0]	x	layout translate

t[0]: layout modifier mode

v	description
0	none
1	disable
2	show only
3	highlight / debug
4	transparent / background

Definition at line 210 of file layout.scad.

Here is the call graph for this function:

layout_grid_rp()

module layout_grid_rp	(	t	,
		s	,
		b	= zero3d,
		center	= false,
		mode	= 0,
		verb	= 0
	)

A transform sequence to replicate and place a child shape.

Parameters

t	<datastuct> The transform sequence configuration (see below).
s	<integer | integer-list | range> The optional child object selection(s).
b	<decimal-list-2:3> The placement reference region (bounding box).
center	<boolean-list-2:3 | boolean> Center the replication group about the child objects' local origin.
mode	<integer> Modifier mode.
verb	<integer> Console output verbosity.

This module performs an ordered sequence of geometric transforms as a single composite operation. Using a transformation configuration list, child objects may be translated, rotated, mirrored, placed, and replicated as specified in the table below.

An optional bounding box region may be defined to provide a reference frame for layout placement. The layout—also referred to as the bounding box—serves as a positional guide only; placements may extend beyond this region if desired.

Multi-value and structured parameters

t

The transform sequence is specified as a configuration list with the elements described below. The operation supports both 2D and 3D modes. The configuration list does not need to be fully specified; any unspecified elements are automatically assigned the default values shown in the table.

e	data type	3D default	2D default	scalar updates	parameter description
0	integer	mode	mode	-	layout modifier mode
1	decimal-list-2:3 | decimal	[0,0,0]	[0,0]	x	layout placement
2	decimal-list-2:3 | decimal	0	0	z	layout rotate
3	integer-list-2:3 | integer	[0,0,0]	[0,0]	x	child mirror
4	decimal-list-2:3 | decimal	0	0	z	child rotate
5	decimal-list-2:3 | decimal	[0,0,0]	[0,0]	x	layout translate
6	integer-list-2:3 | integer	[1,1,1]	[1,1]	x	child replication
7	integer-list-2:3 | integer	[1,1,1]	[1,1]	x	replication layout grid
8	boolean-list-2:3 | boolean	center	center	[x, y, z]	center replication

t[0]: layout modifier mode

v	description
0	none
1	disable
2	show only
3	highlight / debug
4	transparent / background

Transform example script

    include <omdl-base.scad>;
    include <transforms/layout.scad>;

    $fn = 36;

    b = [20, 5, 20];

    v =
    [
      3,
      0,
      [90,0,0],
      0,
      0,
      0,
      [6,6,1],
      [3,3,6]
    ];

    %cube(b, center=true);
    layout_grid_rp( t=v, b=b, center=true, mode=3 )
    cylinder( r=1, h=6, center=true );

    // end_include

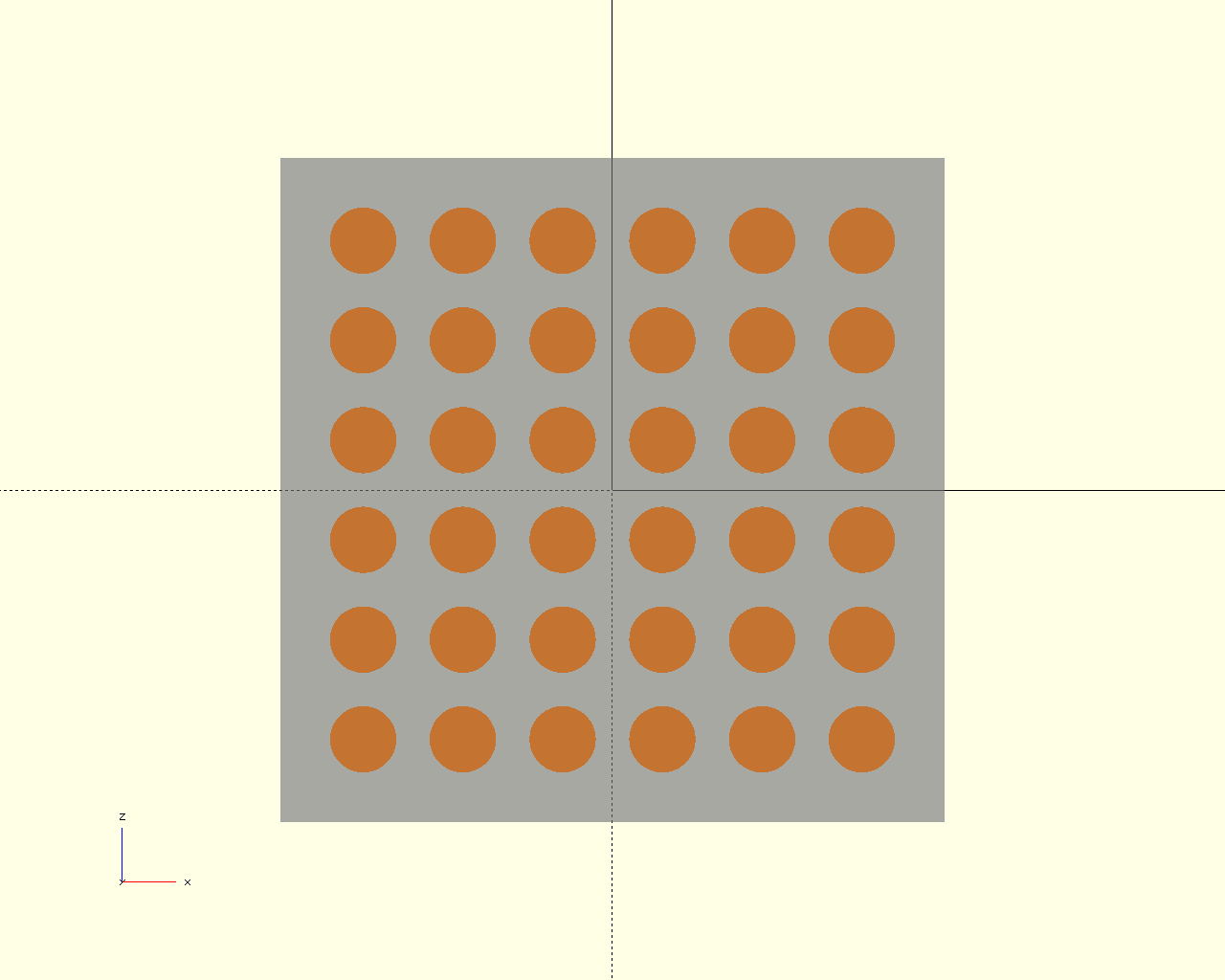

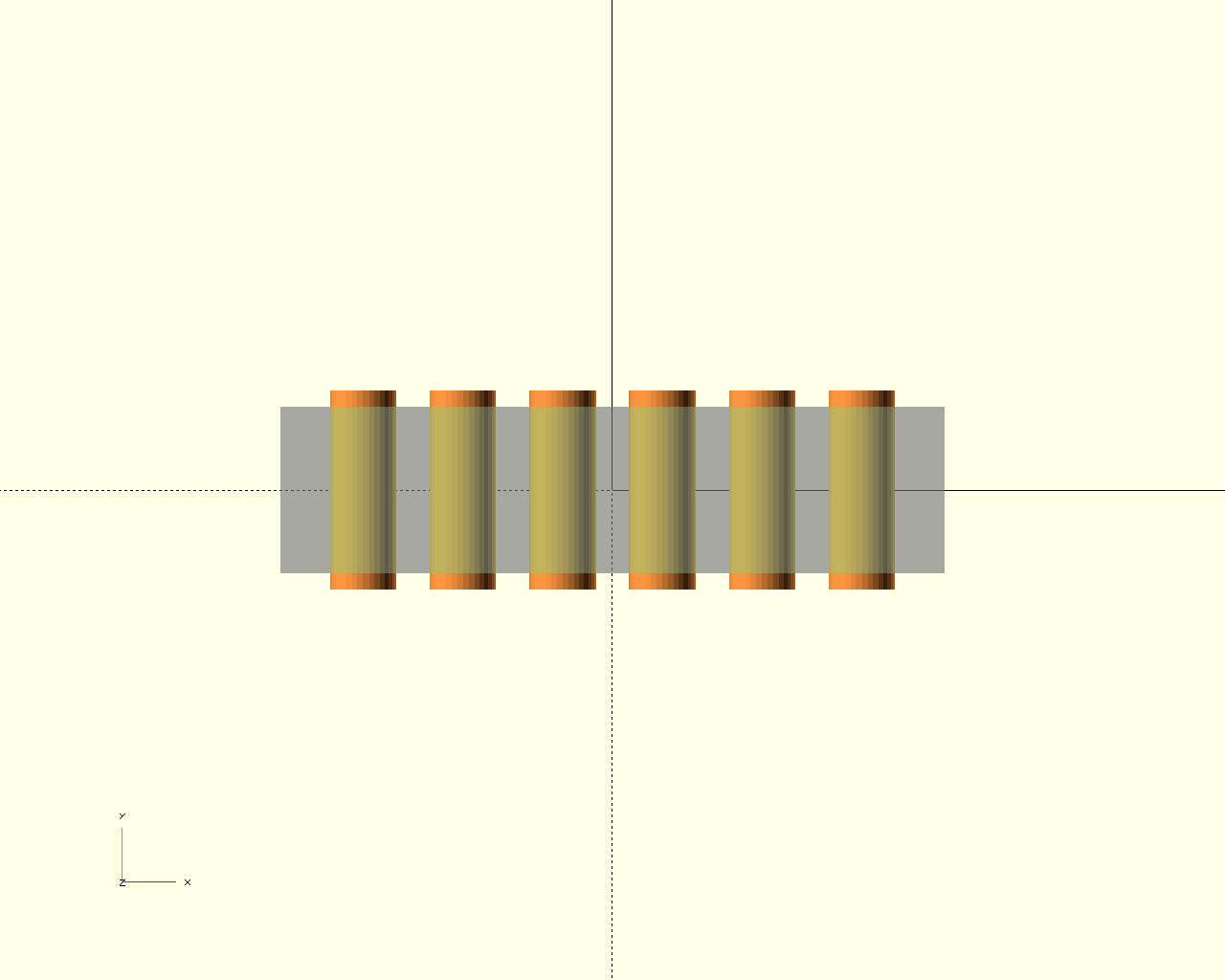

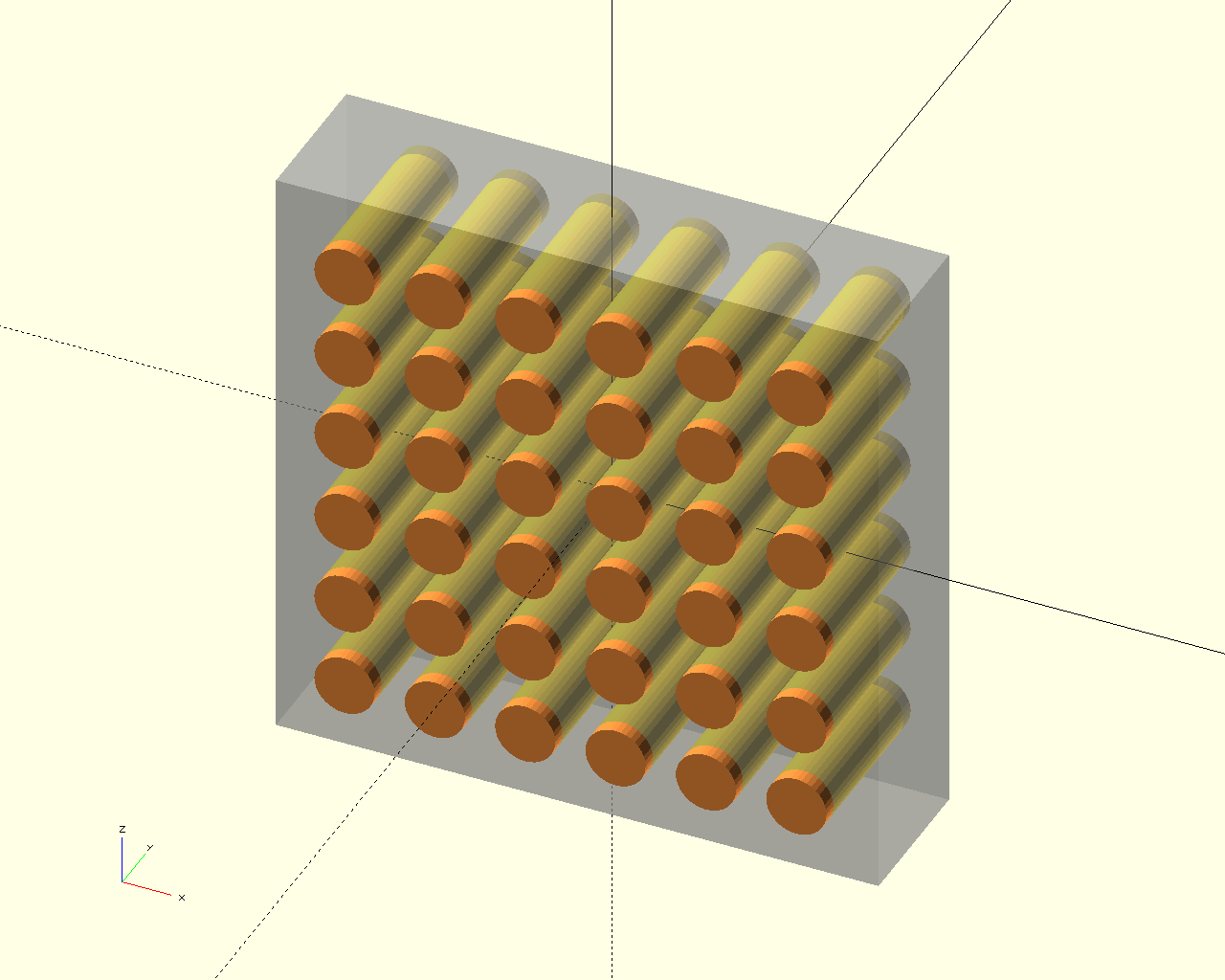

Transform example diagram

top	front	diag

Definition at line 506 of file layout.scad.
