Selection and configuration for common 2D shapes. More...

Collaboration diagram for Select Common 2d:

Files
file	select_common_2d.scad
	A standard selection and configuration scheme for common 2D shape construction.

Functions and/or Modules
module	select_common_2d_shape (type=0, argv, center=false, verb=0)
	Select configure and construct one of the available 2d shapes. More...

Usage Details

Selection and configuration for common 2D shapes.

Requires:
include <omdl-base.scad>;
include <shapes/select_common_2d.scad>;

Function and/or Module Documentation

◆ select_common_2d_shape()

module select_common_2d_shape	(	type	= `0`,
		argv	,
		center	= `false`,
		verb	= `0`
	)

Select configure and construct one of the available 2d shapes.

Parameters

type	<integer> Shape type index.
argv	<decimal-list \| decimal> Shape dependent argument vector.
center	<boolean> Center about origin.
verb	<integer> Output verbosity (0-2).

This module provides a standard scheme for selecting and configuring the arguments of most 2D shapes available in the library, offering a consistent and flexible way to include, configure, and modify 2D shapes.

argv

Each shape is configured using the parameter argv. The four elements of this parameter are as follows:

e	data type	default value	parameter description
0	decimal-list-n \| decimal	1	`size` : shape size
1	decimal-list-n \| decimal	undef	`vr` (`sr`) : shape rounding
2	integer-list-n \| integer	1	`vrm` : shape rounding mode
3	integer	5	`fn` : shape rounding facets
4	integer	0	shape modifier

argv[4]: shape modifier

v	modifier description
0	none

type

Dimensioning is shape dependent. The required dimensioning arguments for each supported shape are shown in the following table. All supported shapes and their associated arguments are summarized in the following table:

standard shape types

t	shapes	parameters	shape reference
1	circle	r	circle()
2	ngon	r, n	pg_ngon()
3	rectangle	size	pg_rectangle()
4	rectangle sr	size	pg_rectangle_rs()
5	rhombus	size	pg_rhombus()
6	elliptical sector	r, v1, v2	pg_elliptical_sector()
7	triangle vertices	v1, v2, v3	pg_triangle_ppp()
8	triangle sides	s1, s2, s3	pg_triangle_sss()
9	star	size, n	star2d()
10	corner round	r, m, v1, v2	pg_corner_round()

Selection example script

    include <omdl-base.scad>;
    include <shapes/select_common_2d.scad>;

    size  = [50, 40, 30];
    vr    = [1, 5, 5];
    vrm   = [1, 1, 5];
    fn    = 9;

    type  = 8;
    argv  = [size, vr, vrm, fn];

    select_common_2d_shape(type=type, argv=argv, center=true);

    // end_include

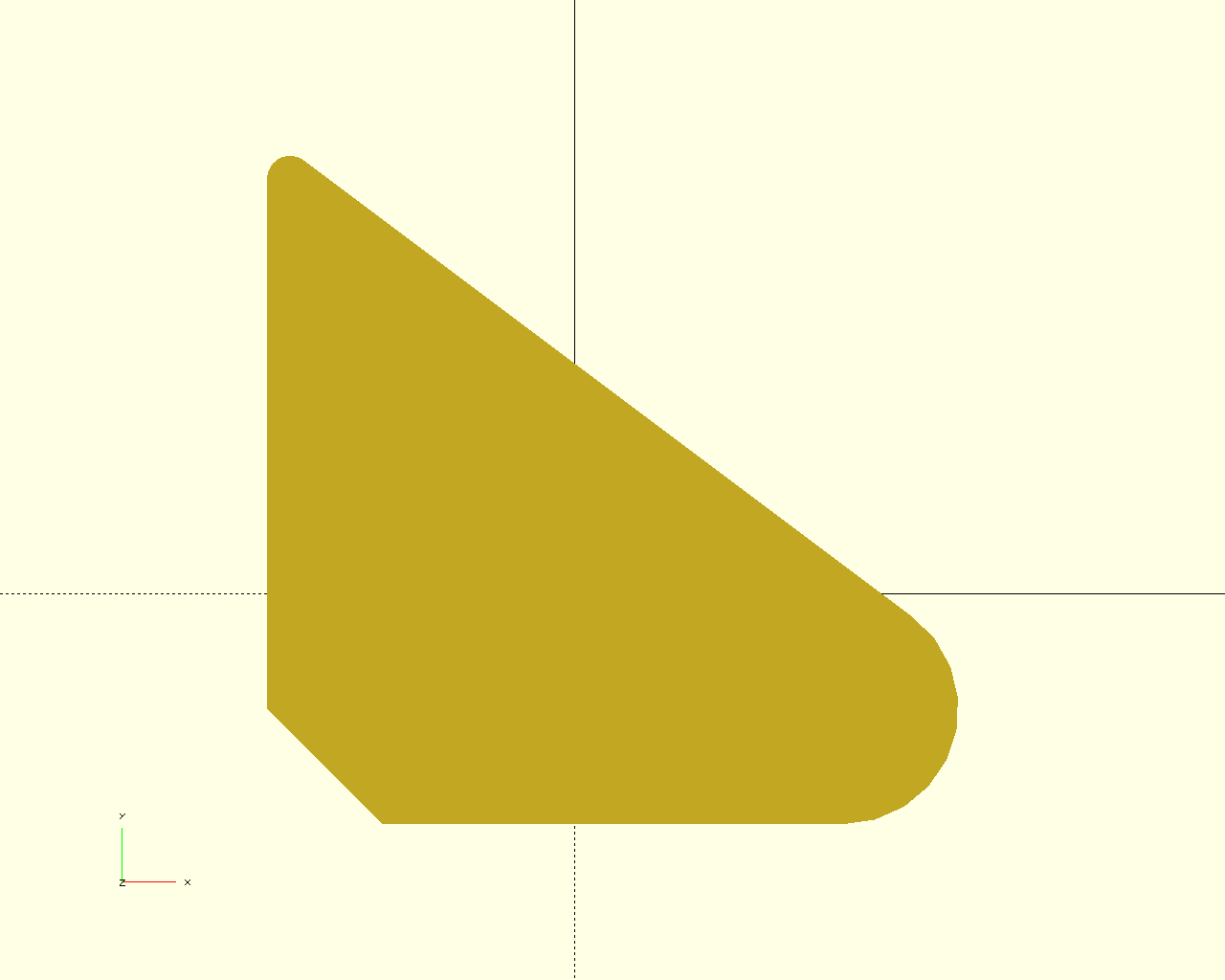

Selection example diagram
top

custom shape types

t	shapes	parameters	function invocation name
50	custom shape 1	size	`select_common_2d_shape_50()`
51	custom shape 2	size	`select_common_2d_shape_51()`
52	custom shape 3	size	`select_common_2d_shape_52()`
53	custom shape 4	size	`select_common_2d_shape_53()`
54	custom shape 5	size	`select_common_2d_shape_54()`

User-defined custom shape functions can be selected by defining a shape function using one of the reserved custom shape function names, and then referencing the corresponding shape type listed in the table above. The custom function prototype and an example is provided below.

Prototype:

// custom shape module, type 50

module select_common_2d_shape_50(size, vr, vrm, fn, center)
{

};

Custom shape example script

    include <omdl-base.scad>;
    include <shapes/select_common_2d.scad>;

    module select_common_2d_shape_50(size, vr, vrm, fn, center)
    {
      square(size, center=center);
    }

    size  = [50, 40];
    vr    = undef;
    vrm   = undef;
    fn    = undef;

    type  = 50;
    argv  = [size, vr, vrm, fn];

    select_common_2d_shape(type=type, argv=argv, center=true);

    // end_include

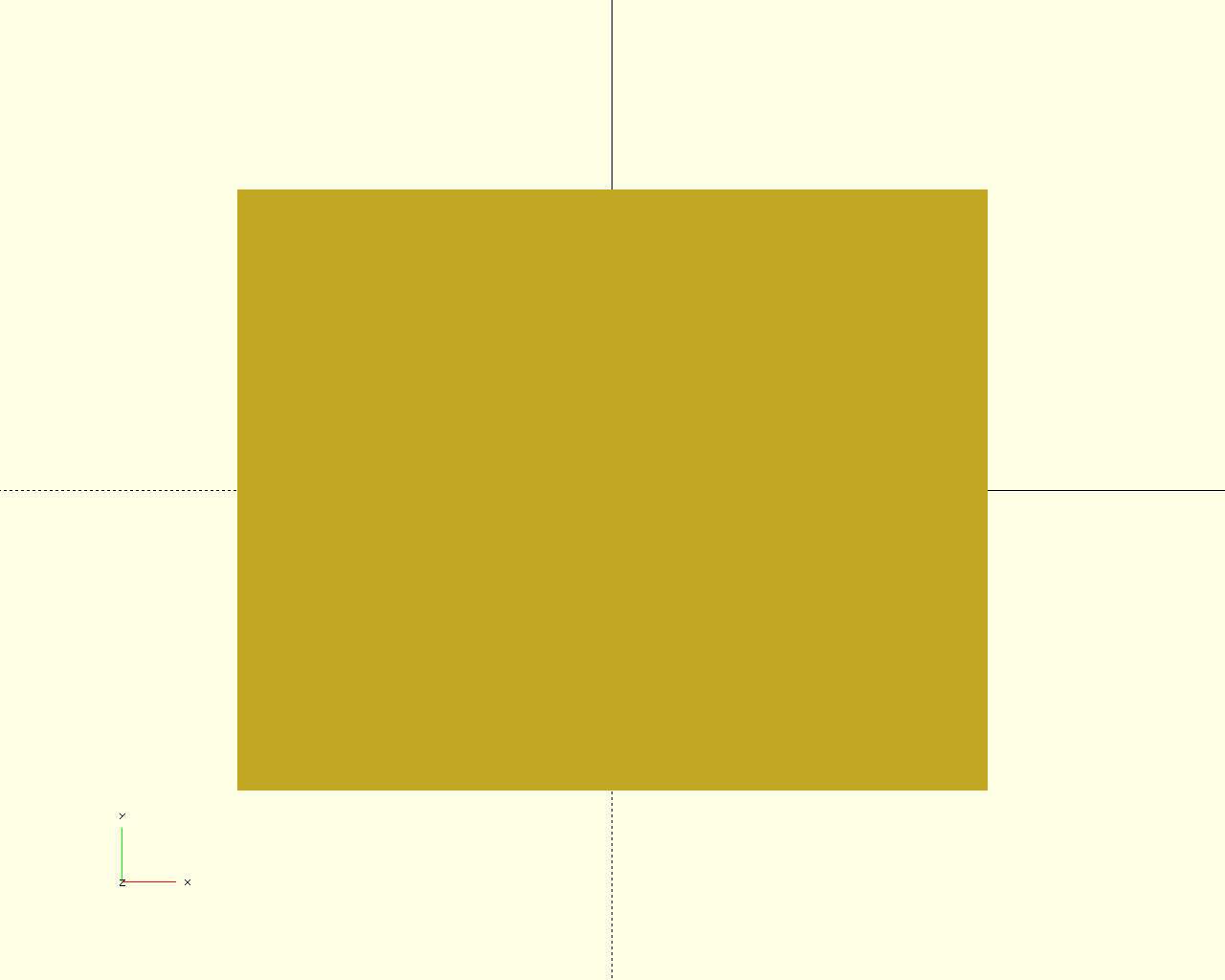

Custom shape example diagram
top

Definition at line 561 of file select_common_2d.scad.
