Rectangular Enclosure Stand

Stand maker for rectangular prism enclosures. More...

Collaboration diagram for Rectangular Enclosure Stand:

Files
file	enclosure_stand_rectangle.scad
	A stand maker for rectangular prism project boxes, housings, and enclosures.

Functions and/or Modules
module	enclosure_stand_rectangle (size, offset=0, brace=1/2, count=1, space=0, form=0, mode=0)
	A stand maker for rectangular project boxes, housings, and enclosures. More...

Usage Details

Stand maker for rectangular prism enclosures.

Requires:
include <omdl-base.scad>;
include <parts/3d/enclosure/enclosure_stand_rectangle.scad>;

Function and/or Module Documentation

enclosure_stand_rectangle()

module enclosure_stand_rectangle	(	size	,
		offset	= 0,
		brace	= 1/2,
		count	= 1,
		space	= 0,
		form	= 0,
		mode	= 0
	)

A stand maker for rectangular project boxes, housings, and enclosures.

Parameters

size	<decimal-list-3 | decimal> dimension(s); a list [w, d, h], the width, depth, and height, or a single decimal for width.
offset	<decimal> the case seat vertical offset.
brace	<decimal> the stand brace member percentage of (seat + offset).
count	<integer> the number of enclosures.
space	<decimal> the additional separation space between multiple enclosures.
form	<integer> the stand form {0 : 7}. Form 6 and 7 can be used as a top brace, or stacking stop brace, for a multi-enclosure stand.
mode	<integer> the size specification mode {0: size of case, 1: size of stand}.

Construct a stand for a rectangular prism enclosure. A multi-enclosure stand can be constructed using the count parameter. The size can refer to the enclosure size or the stand size as controlled by the mode parameter. The form = 6 is useful for creating top braces for multi-enclosure stands.

Muilti-enclosure example script

    include <omdl-base.scad>;
    include <parts/3d/enclosure/enclosure_stand_rectangle.scad>;

    rotate([90, 0, 0])
    {
      e = [35, 125, 125]; w = first(e);
      c = 3; o = 8 + 3/4; s = 2 + 17/32;

      translate([0, 0, -w/2 + w])
      enclosure_stand_rectangle( size=w, count=c );

      translate([0, 0, -w/2 - w])
      enclosure_stand_rectangle( size=w, count=c );

      translate([0, third(e)+o*2, -w/2])
      mirror([0, 1, 0])
      enclosure_stand_rectangle( size=w, count=c, form=6 );

      %for (x = [-1, 0, +1])
      translate([(w+s*2)*x, second(e)/2+o, 0])
      cube(e, center=true);
    }

    // end_include

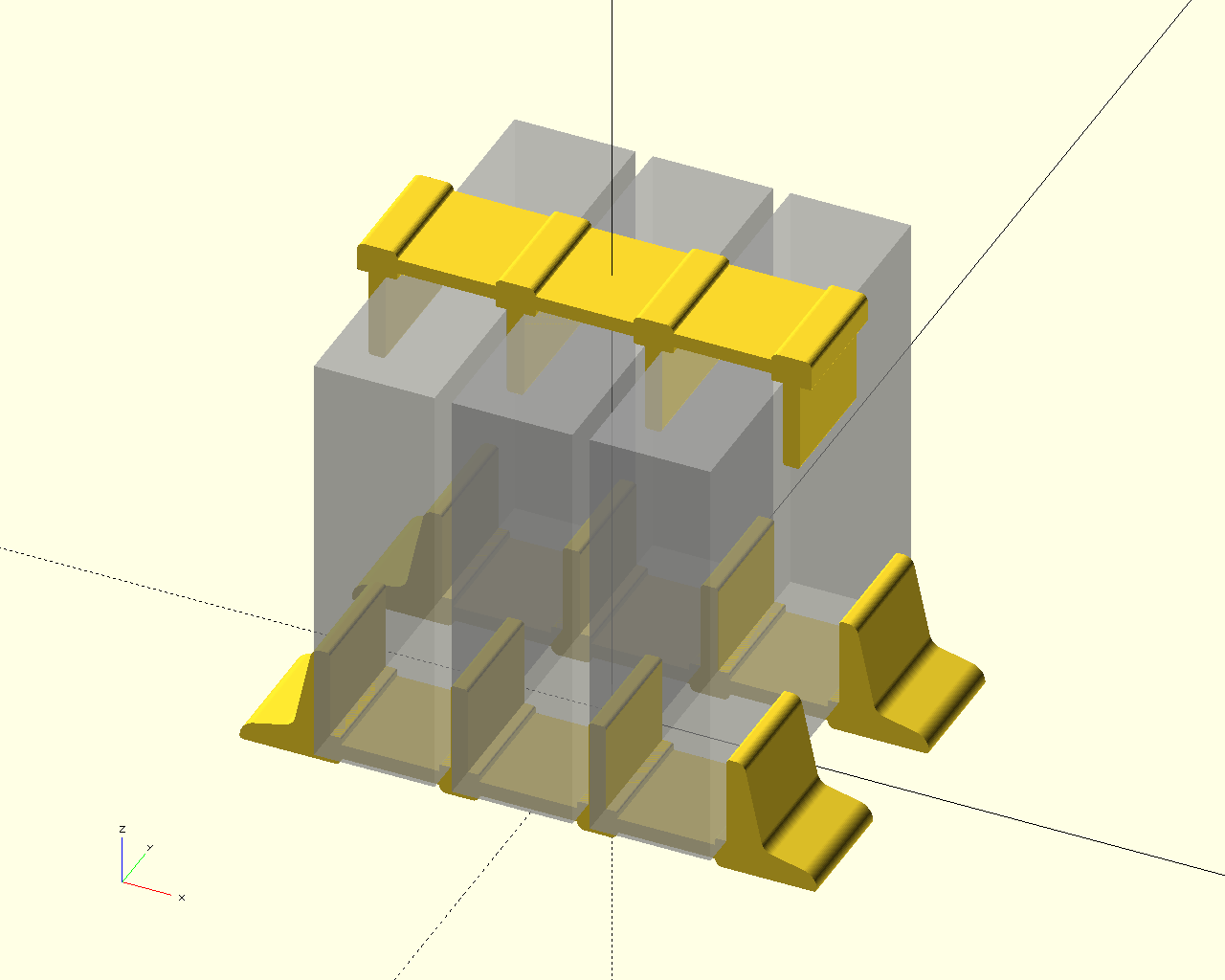

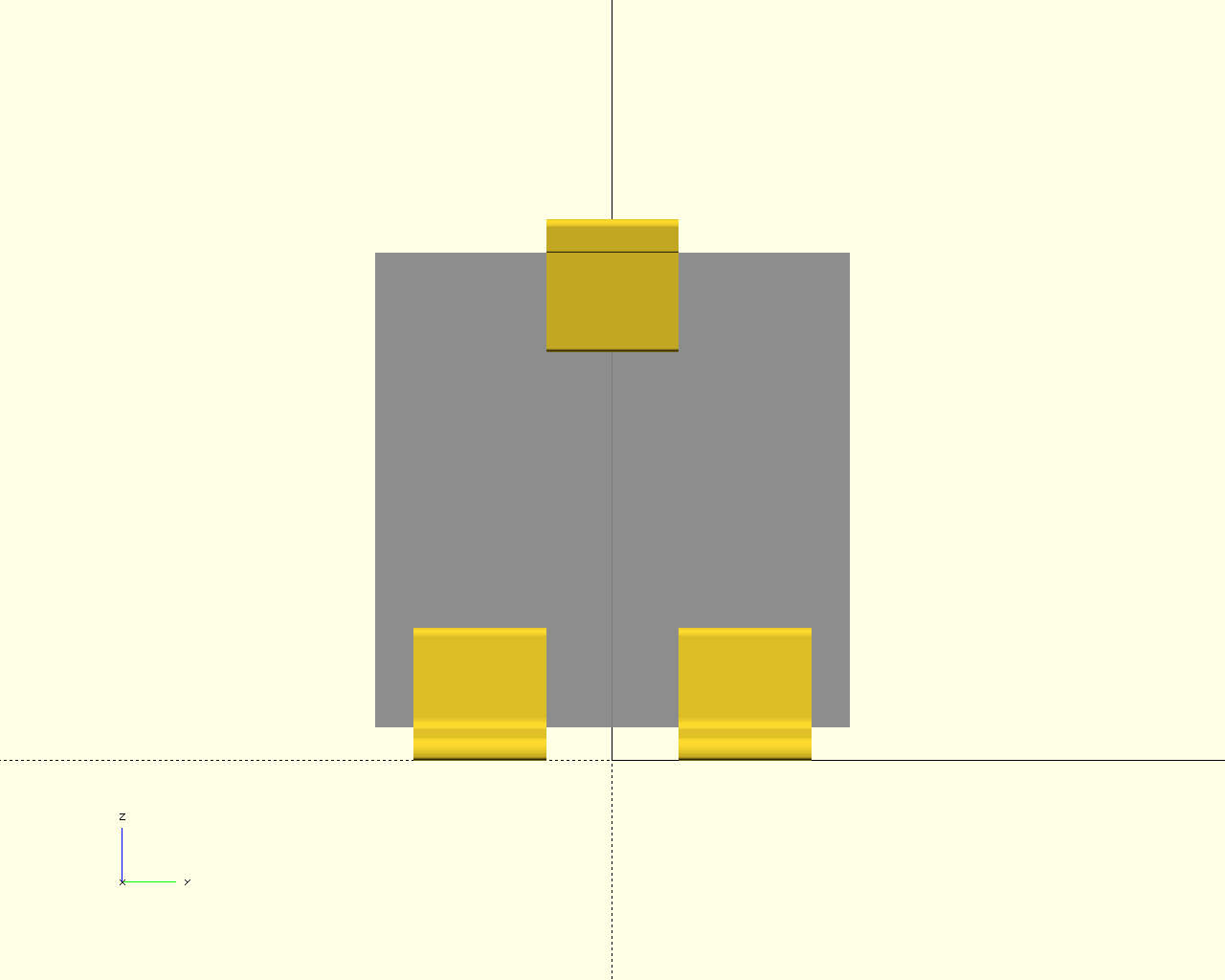

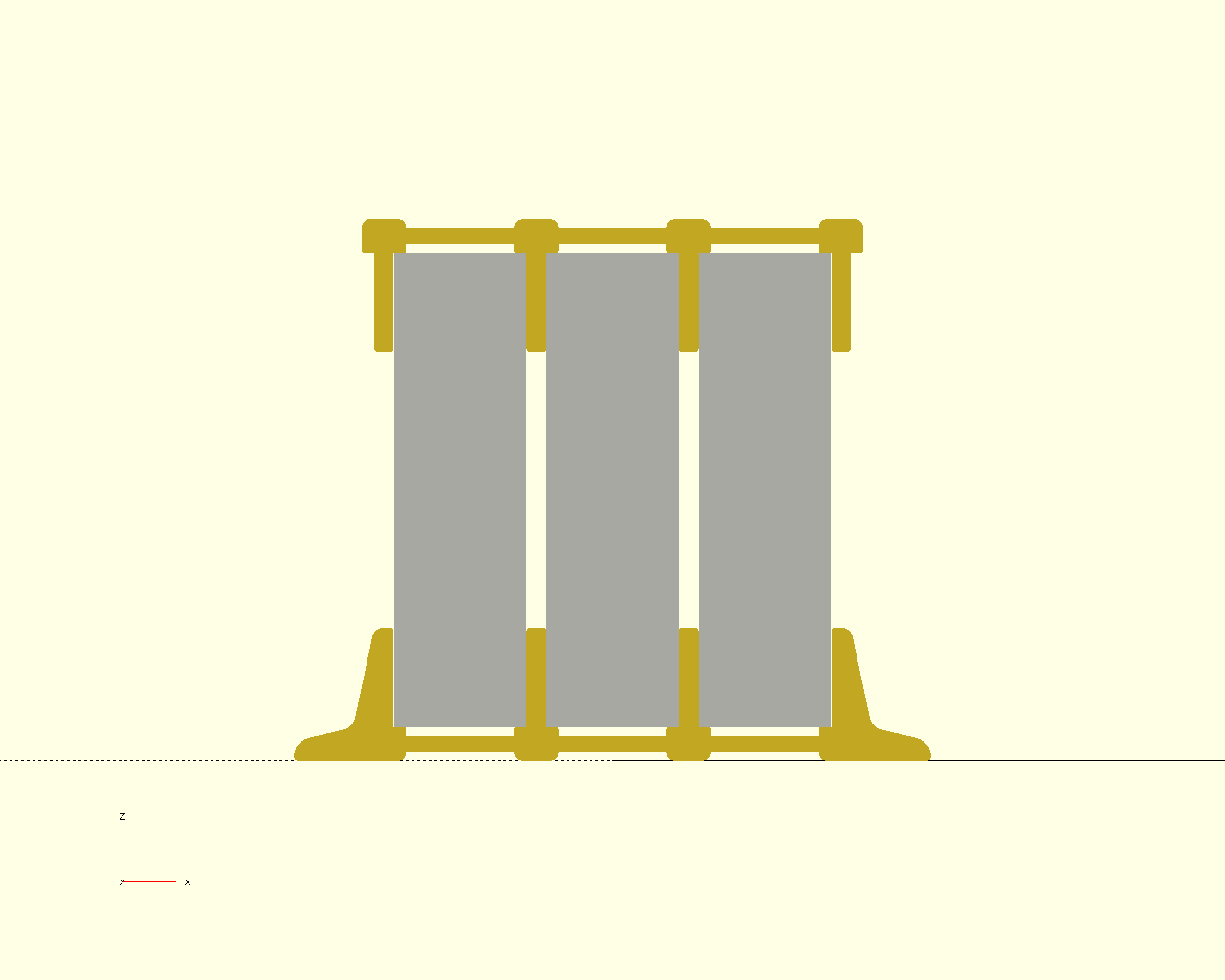

Muilti-enclosure example diagram

right	front	diag

Definition at line 344 of file enclosure_stand_rectangle.scad.
