OpenSCAD Mechanical Design Library
Radial Ball

Rotary motion radial ball bearing model. More...

+ Collaboration diagram for Radial Ball:

Files

file  bearing_radial_ball.scad
 Rotary motion radial ball bearing model.


Functions

module radial_ball (n, a=1, s=false, c=true)
 Radial ball bearing model. More...


Detailed Description

Rotary motion radial ball bearing model.

Requires:
include <omdl-base.scad>;
include <database/component/motion/bearing_radial_ball.scad>;
include <models/3d/motion/bearing_radial_ball.scad>;

Function Documentation

◆ radial_ball()

module radial_ball ( ,
= 1,
= false,
= true
)

Radial ball bearing model.

Parameters
n<string> the bearing model name (see: database table).
a<integer> model z-alignment; {0:bottom, 1:middle, 2:top}.
s<boolean> render shell only.
c<boolean> render with color.

The available model names can be found in the database table.

Bearing example script

include <omdl-base.scad>;
include <database/component/motion/bearing_radial_ball.scad>;
include <models/3d/motion/bearing_radial_ball.scad>;
radial_ball("608");
// end_include
module radial_ball(n, a=1, s=false, c=true)
Radial ball bearing model.

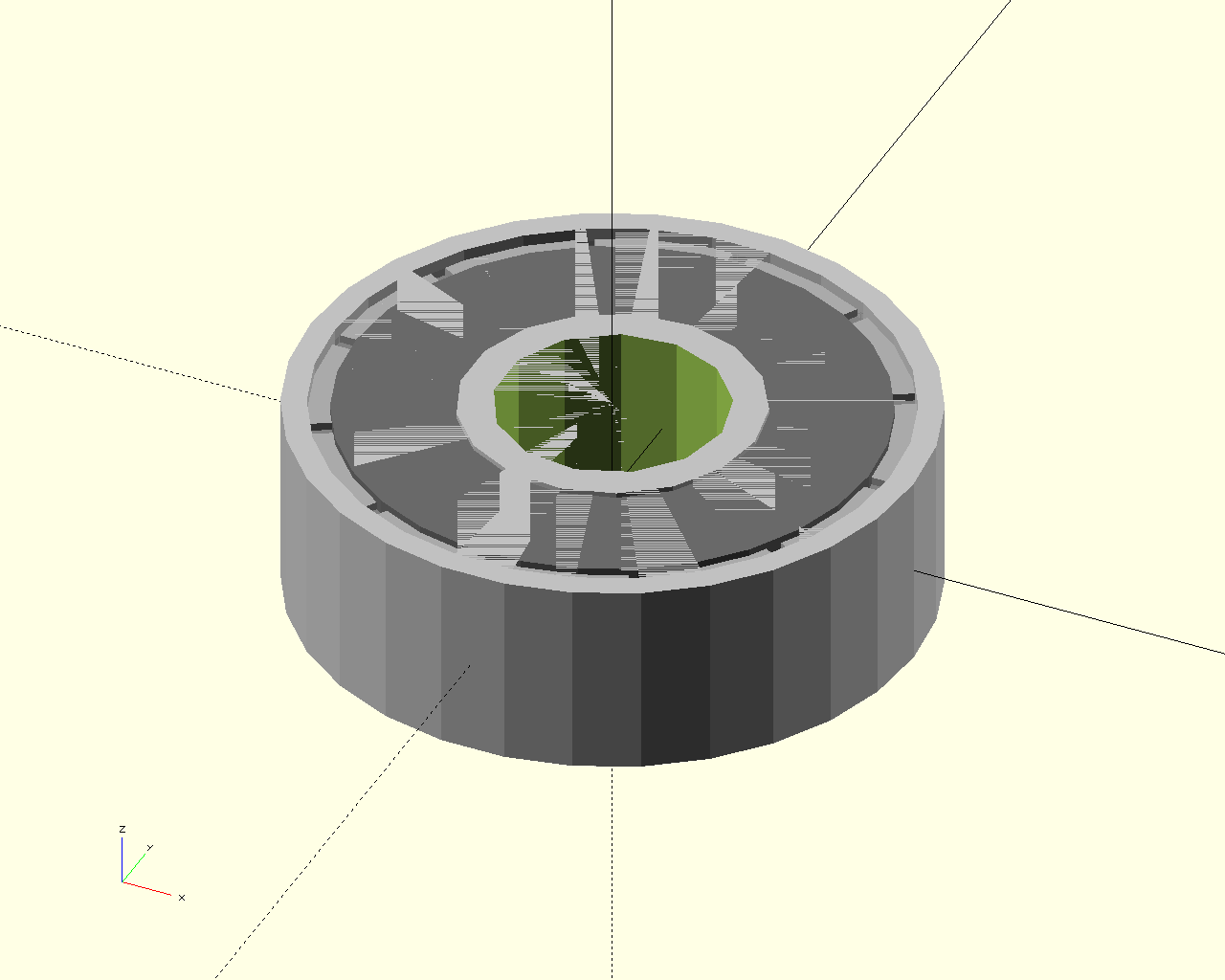

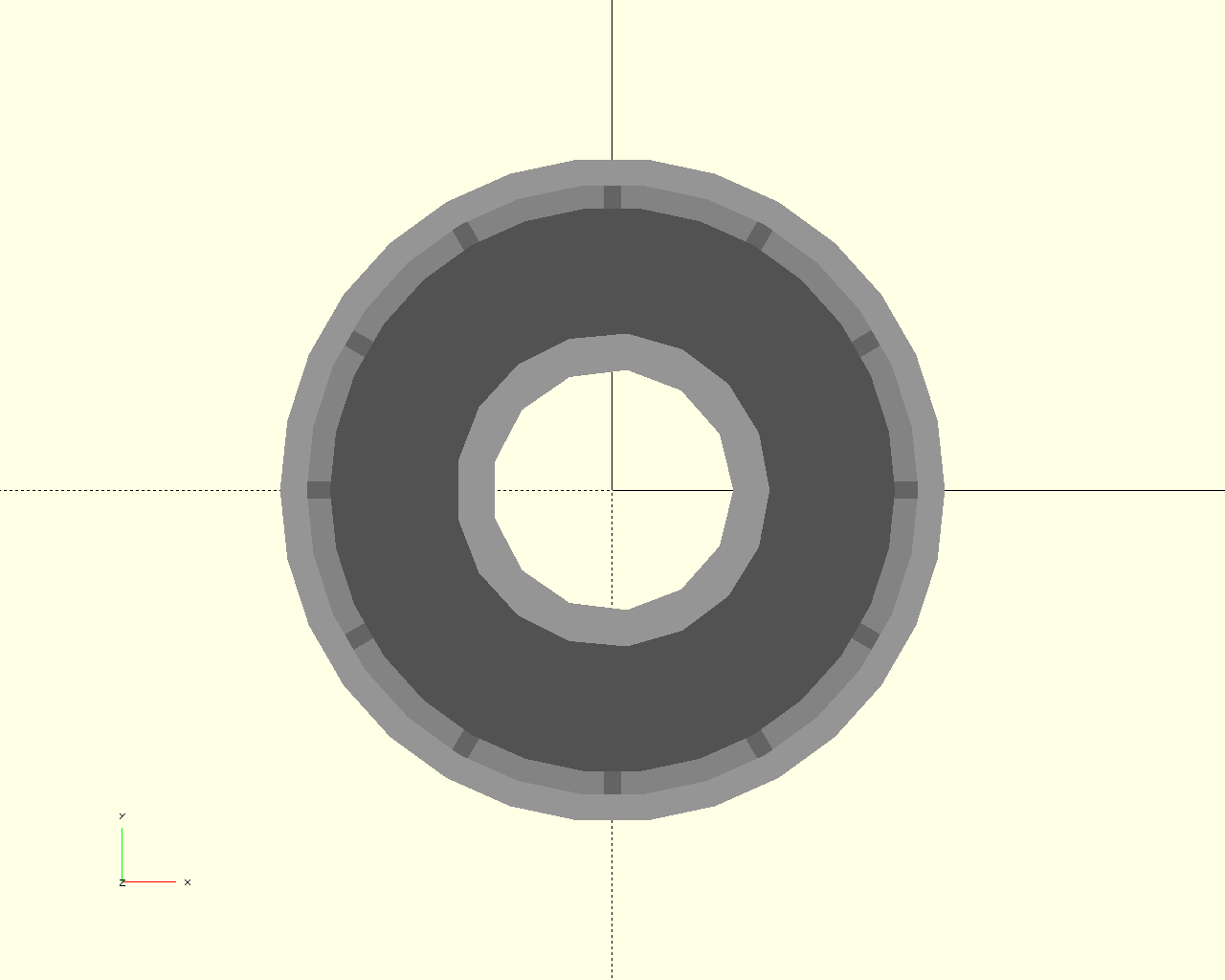

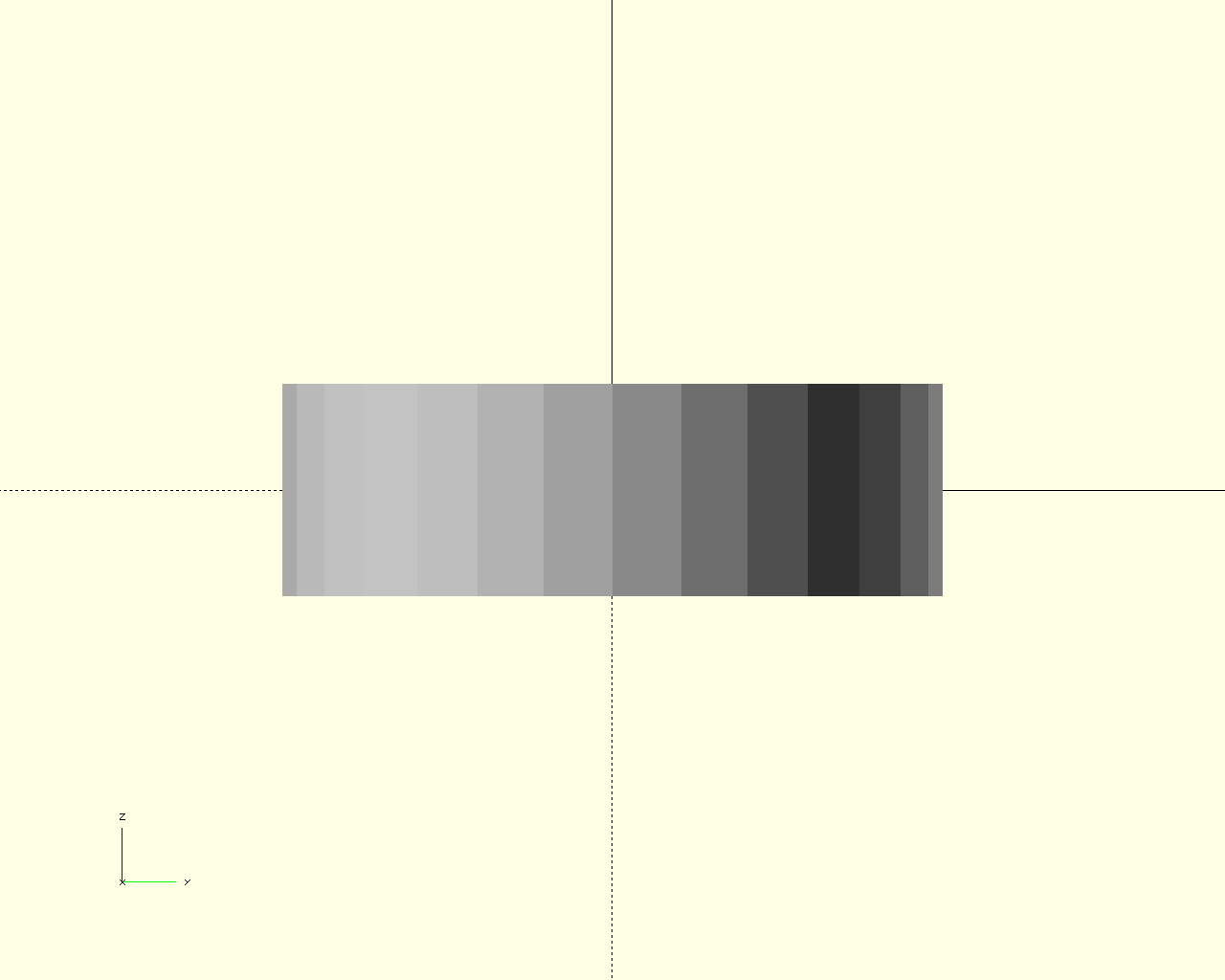

Bearing example diagram
toprightdiag
expand topexpand rightexpand diag

Definition at line 330 of file bearing_radial_ball.scad.
