Linear lmxuu

Linear motion bearing model. More...

Collaboration diagram for Linear lmxuu:

Files
file	bearing_linear_lmxuu.scad
	Linear motion bearing model.

Functions
module	linear_lmxuu (n, a=1, s=false, c=true)
	Linear motion bearing model. More...

Detailed Description

Linear motion bearing model.

Requires:
include <omdl-base.scad>;
include <database/component/motion/bearing_linear_lmxuu.scad>;
include <models/3d/motion/bearing_linear_lmxuu.scad>;

Function Documentation

linear_lmxuu()

module linear_lmxuu	(	n	,
		a	= 1,
		s	= false,
		c	= true
	)

Linear motion bearing model.

Parameters

n	<string> the bearing model name (see: database table).
a	<integer> model z-alignment; {0:bottom, 1:middle, 2:top}.
s	<boolean> render shell only.
c	<boolean> render with color.

The available model names can be found in the database table.

Bearing example script

    include <omdl-base.scad>;
    include <database/component/motion/bearing_linear_lmxuu.scad>;
    include <models/3d/motion/bearing_linear_lmxuu.scad>;

    linear_lmxuu("lm8uu");

    // end_include

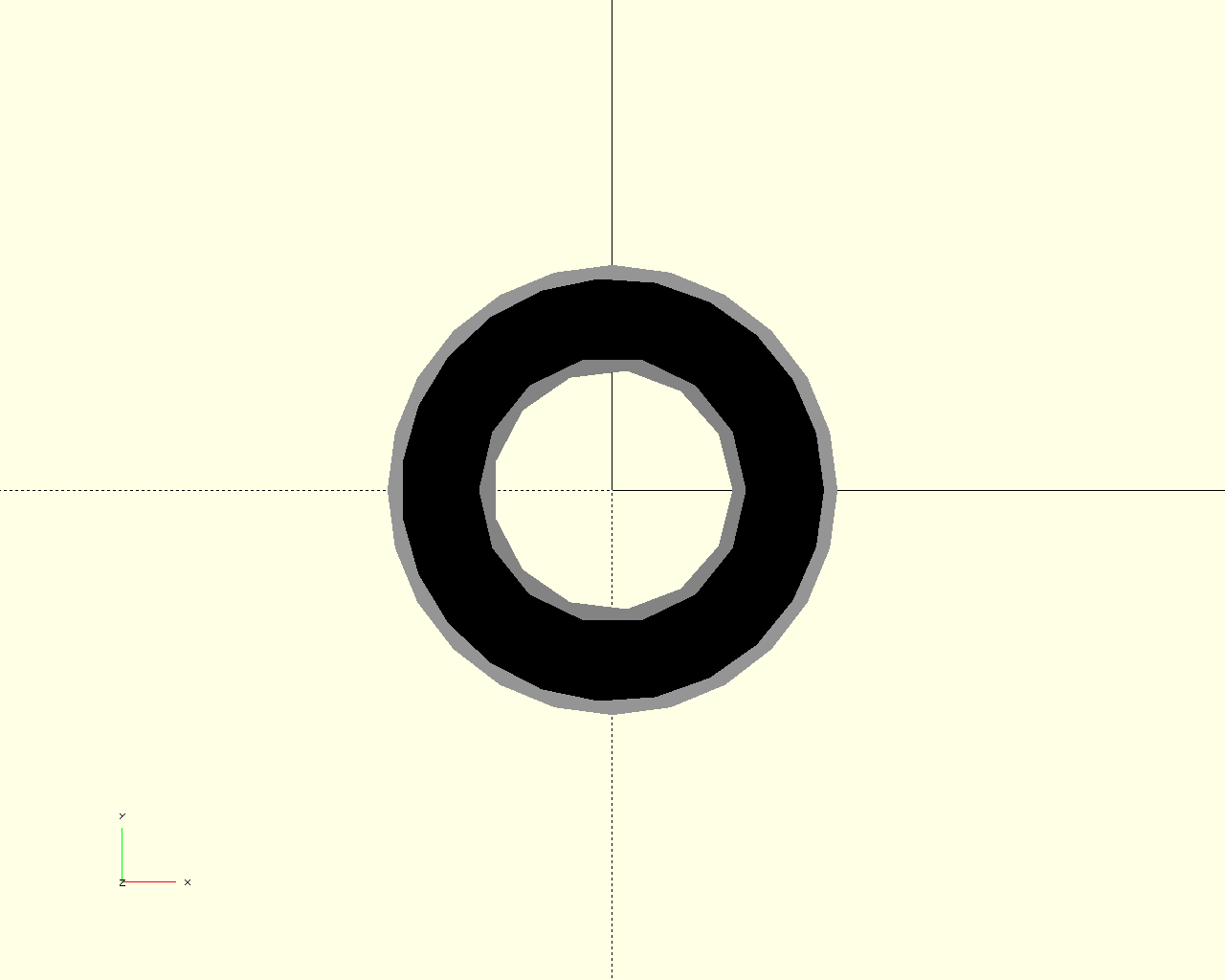

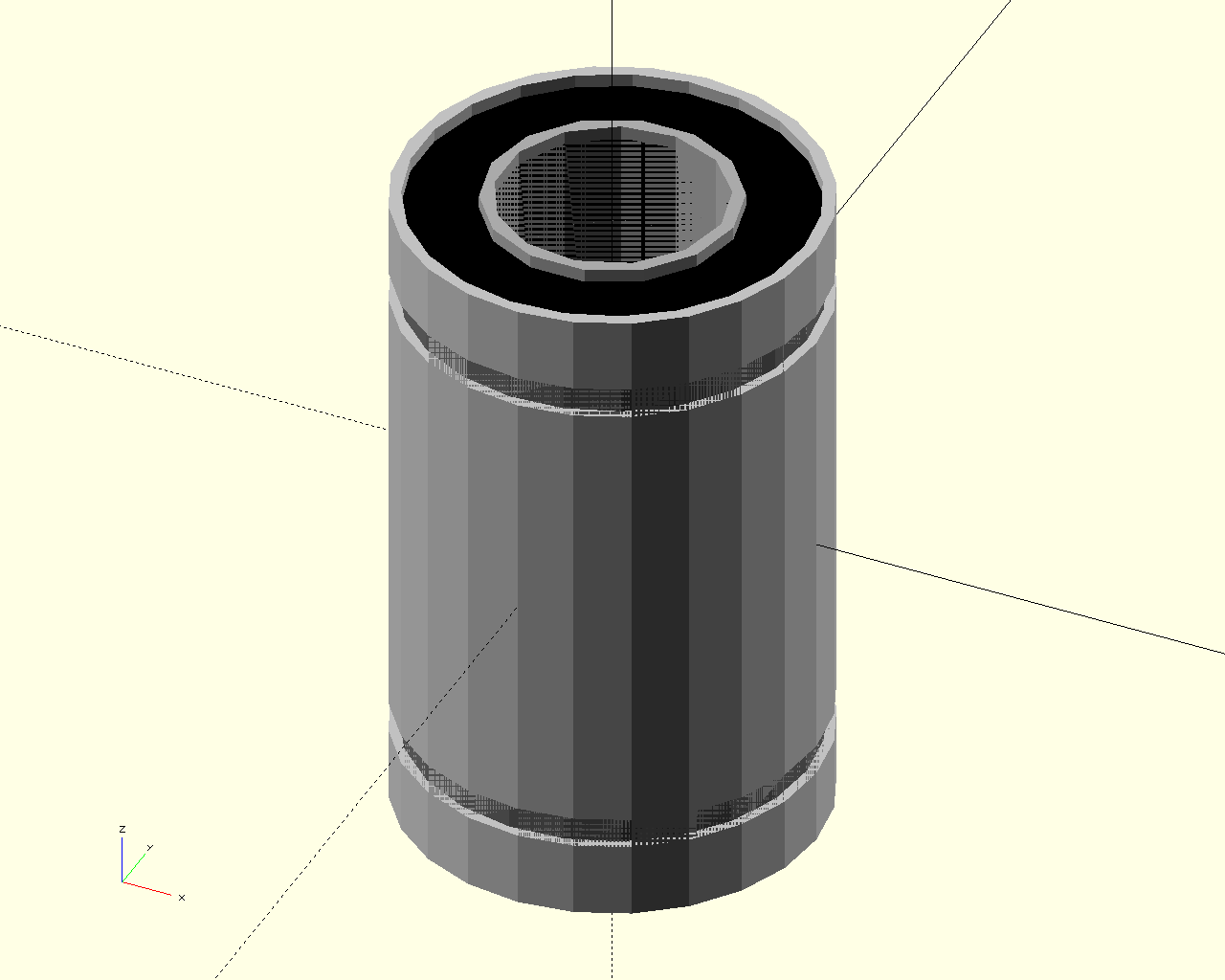

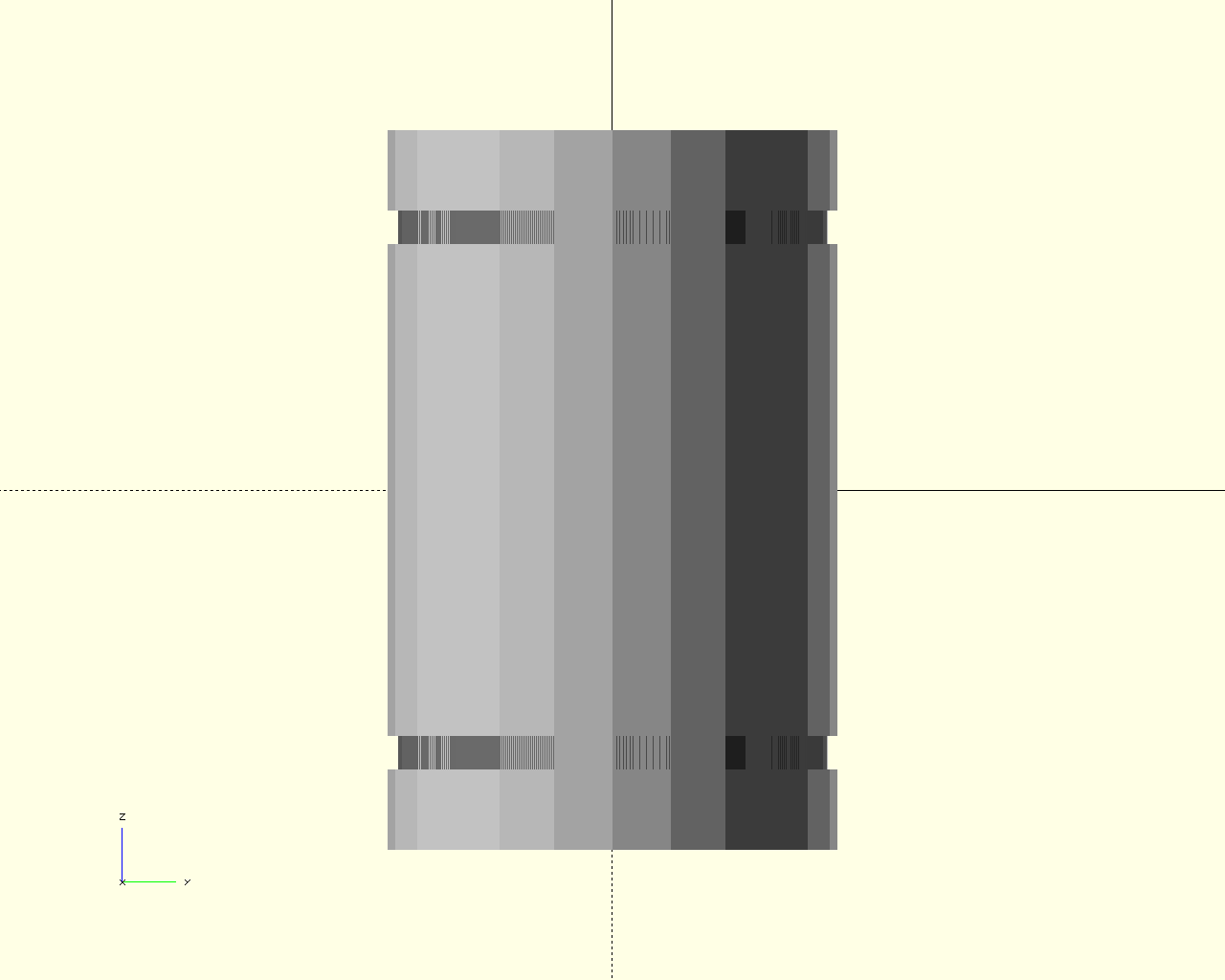

Bearing example diagram

top	right	diag

Definition at line 330 of file bearing_linear_lmxuu.scad.
