Cylindrical batteries data table. More...

Collaboration diagram for Cylindrical:

Files
file	cylindrical.scad
	Cylindrical batteries data table.

Detailed Description

Cylindrical batteries data table.

Requires:
include <omdl-base.scad>;
include <database/component/battery/cylindrical.scad>;

Cylindrical batteries parameters

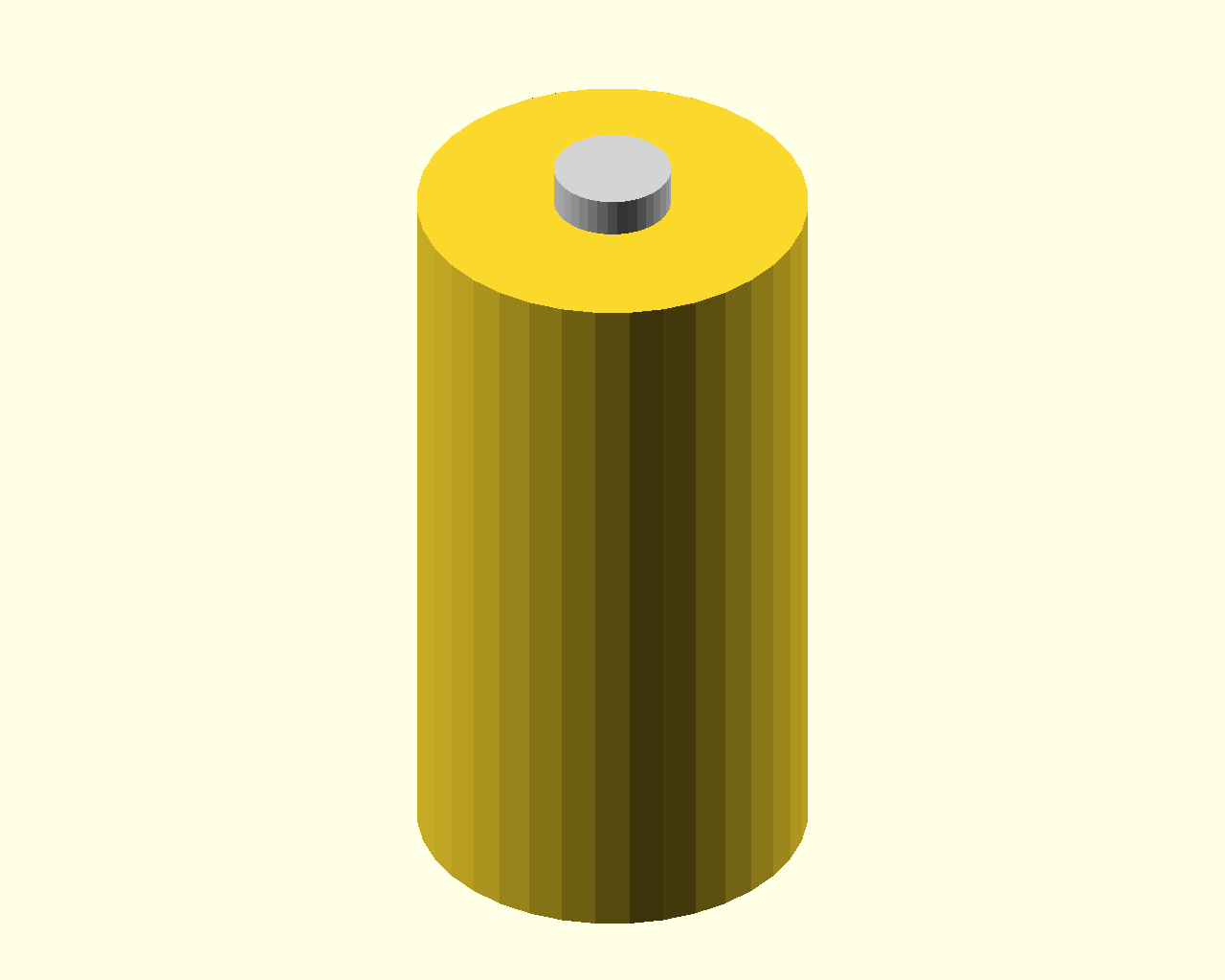

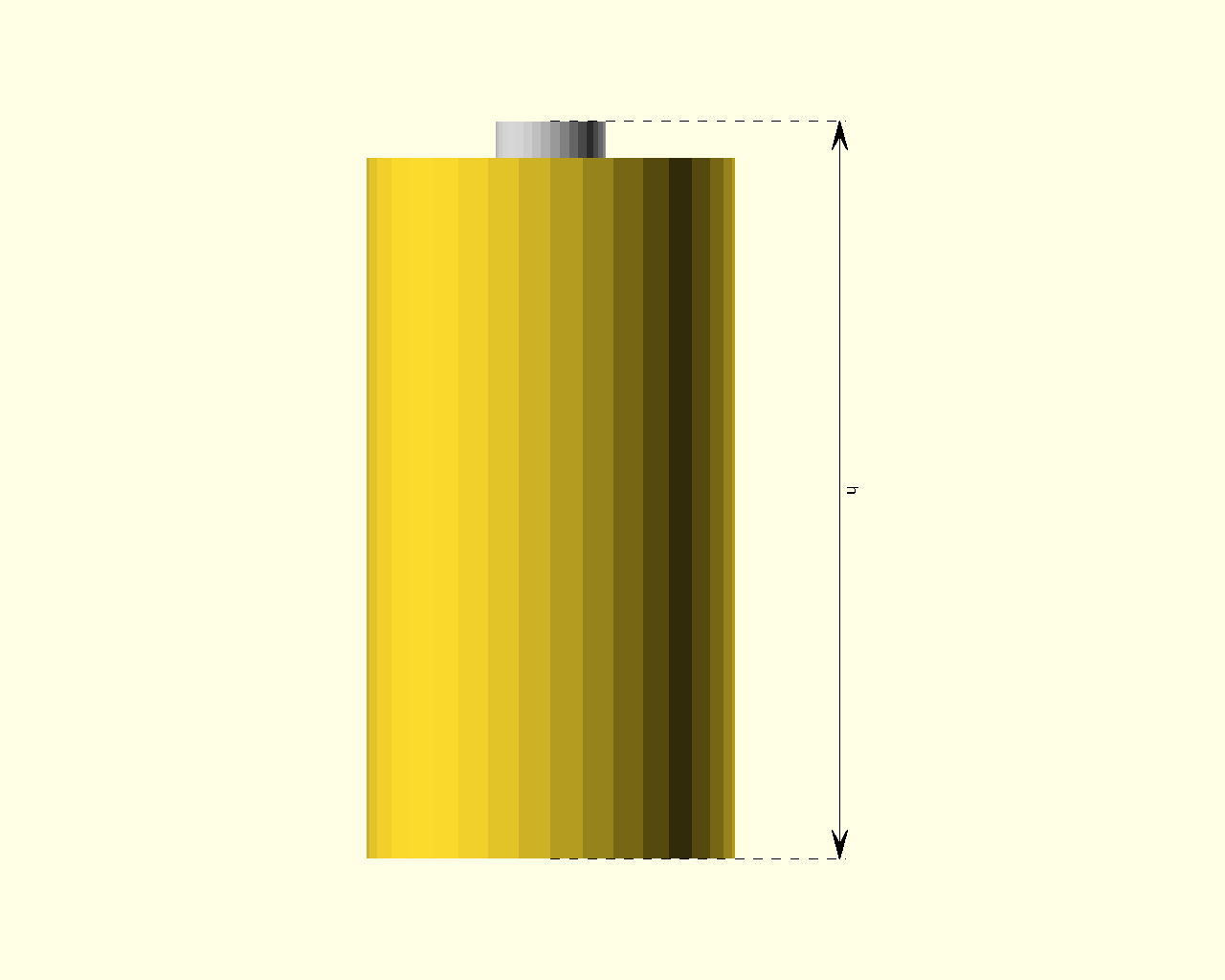

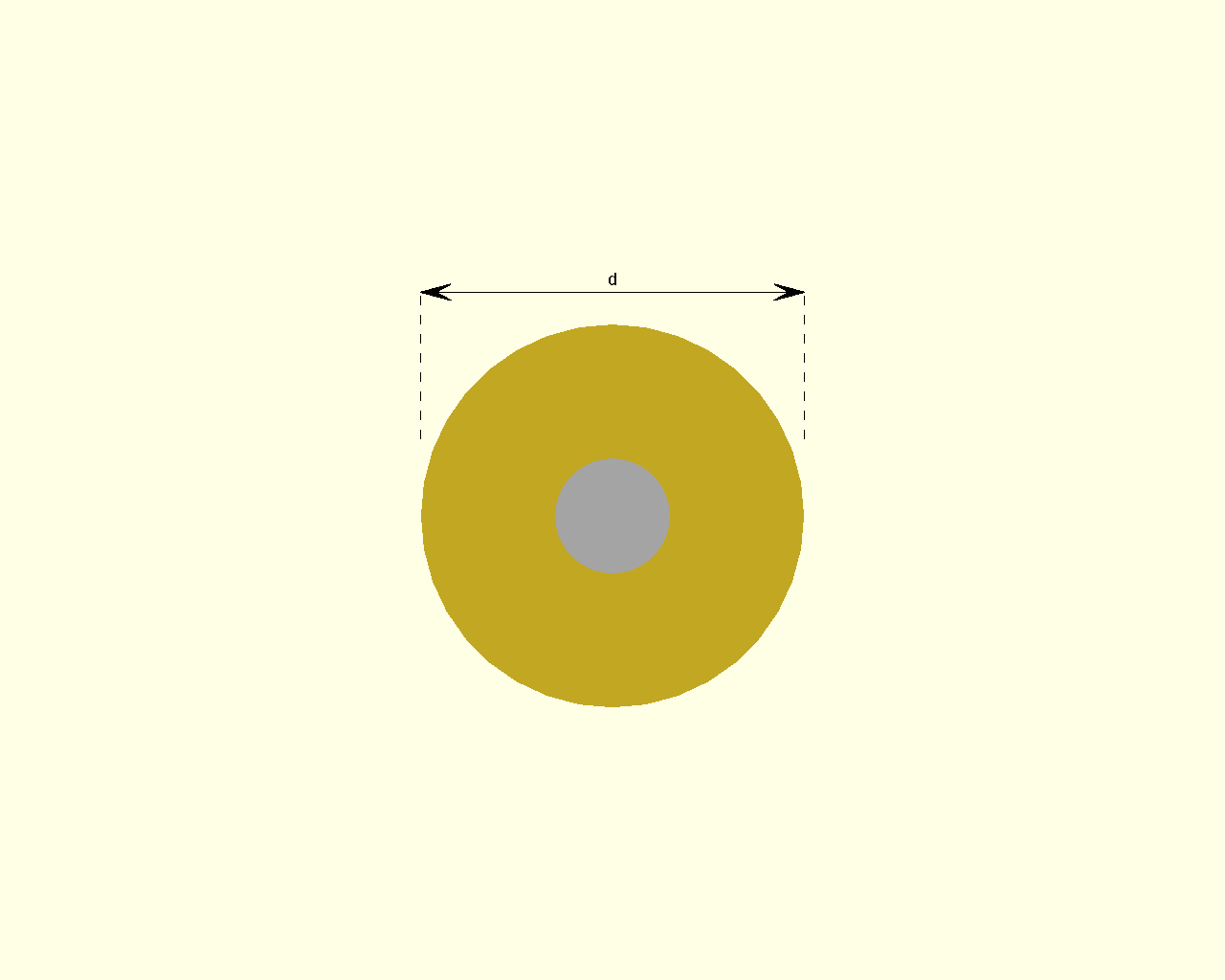

top	right	diag

See Wikipedia battery sizes for information.

Cylindrical batteries table

idx	battery identifier (id)	battery diameter (d)	battery height (h)
0	aaaa	8.3	42.5
1	aaa	10.5	44.5
2	aa	14.5	50.5
3	h-aa	14.5	25
4	a	17	50
5	b	21.5	60
6	c	26.2	50
7	s-c	22.2	42.9
8	d	34.2	61.5
9	f	33	91
10	n	12	30.2
11	a21	10.3	16
12	a23	10.5	28.5
13	a27	8	28.2
14	ba5800	35.5	128.5
15	duplex	21.8	74.6
16	4sr44	13	25.2
17	10180	10	18
18	10280	10	28
19	10440	10	44
20	14650	14	65
21	16650	16	65
22	18650	18	65
23	21700	21	70
24	26500	26	50
25	32600	32	60

Measurements in millimeters.

Variable Documentation

dtc_battery_cylindrical

<map> Cylindrical batteries data table columns map.

Definition at line 297 of file cylindrical.scad.

dtr_battery_cylindrical

<table> Cylindrical batteries data table rows.

Definition at line 306 of file cylindrical.scad.
