Button cell batteries data table. More...

Collaboration diagram for Button cell:

Files
file	button.scad
	Button cell batteries data table.

Detailed Description

Button cell batteries data table.

Requires:
include <omdl-base.scad>;
include <database/component/battery/button.scad>;

Button cell batteries parameters

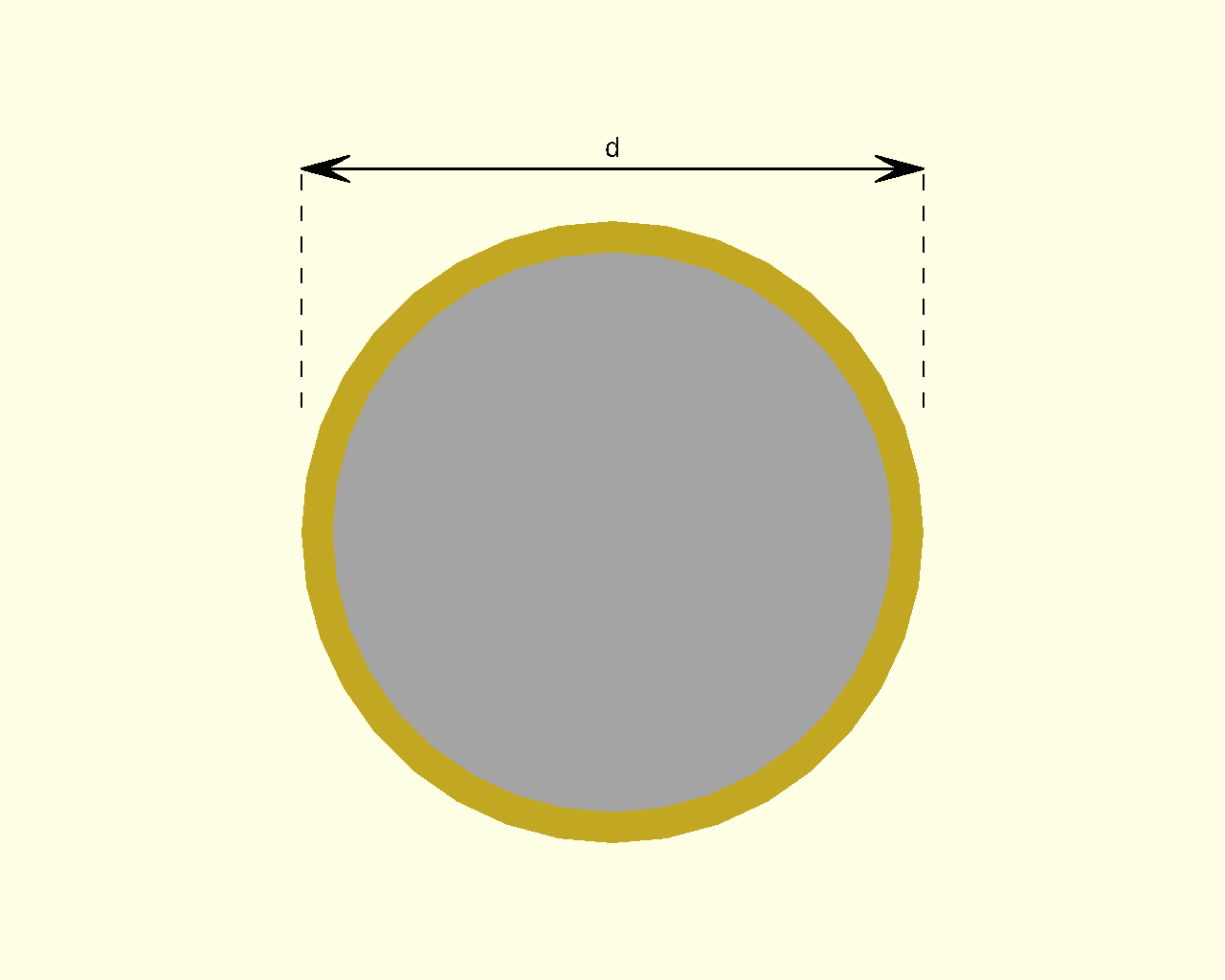

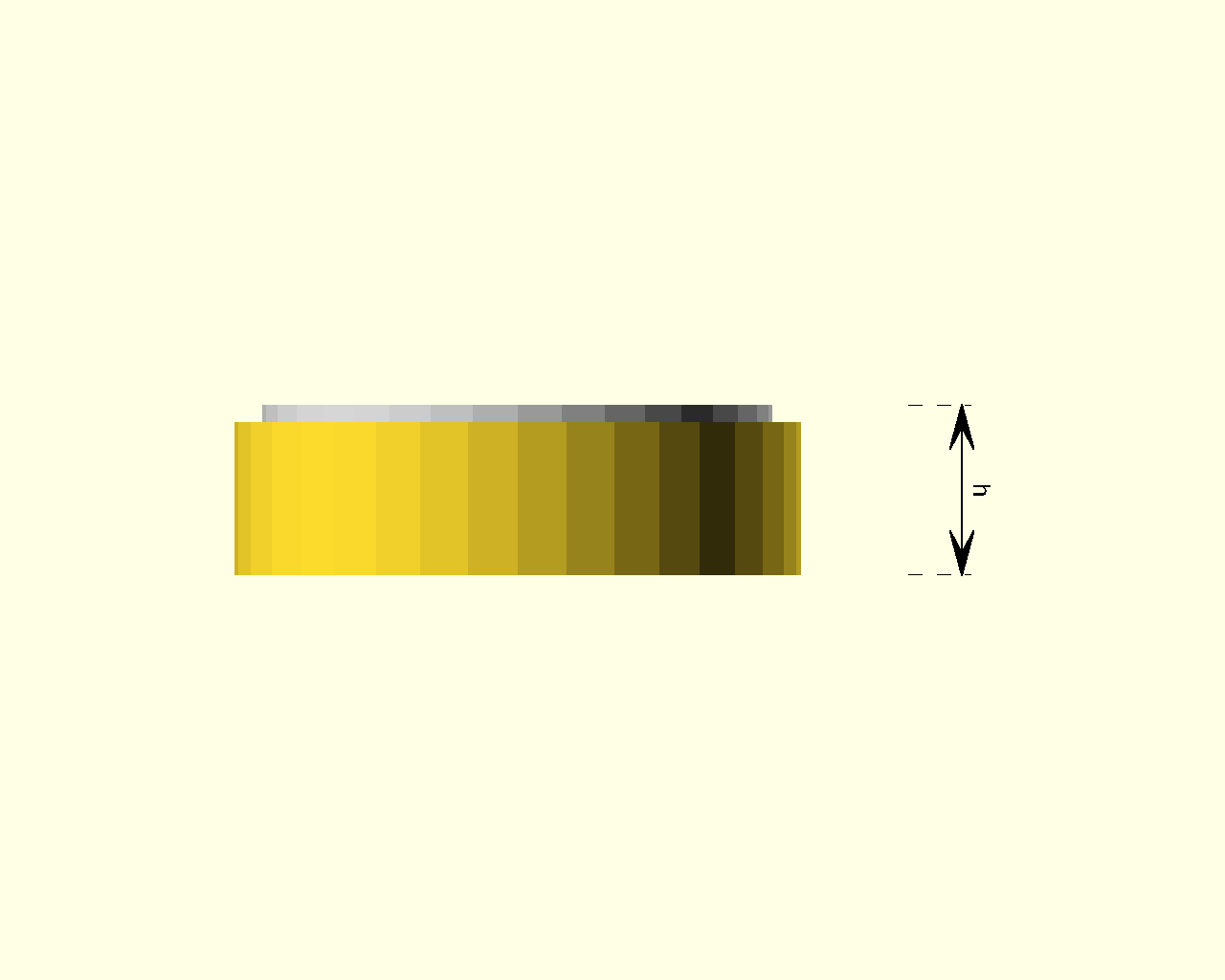

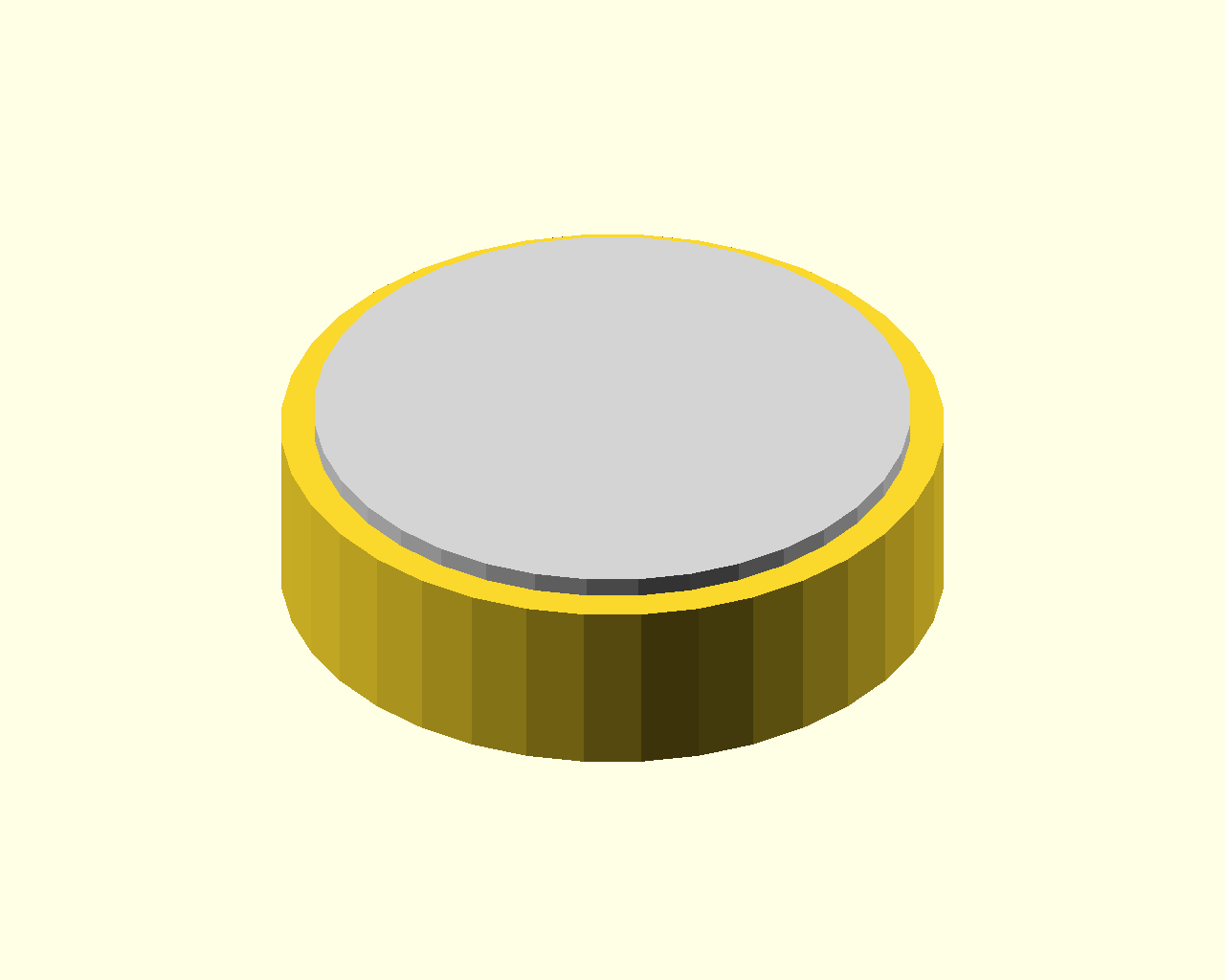

top	right	diag

See Wikipedia battery sizes for information.

Button cell batteries table

idx	battery identifier (id)	battery diameter (d)	battery height (h)
0	CR927	9.5	2.7
1	CR1025	10	2.5
2	CR1130	11.5	3
3	CR1216	12.5	1.6
4	CR1220	12.5	2
5	CR1225	12.5	2.5
6	CR1616	16	1.6
7	CR1620	16	2
8	CR1632	16	3.2
9	CR2012	20	1.2
10	CR2016	20	1.6
11	CR2020	20	2
12	CR2025	20	2.5
13	CR2032	20	3.2
14	CR2040	20	4
15	CR2050	20	5
16	CR2320	23	2
17	CR2325	23	2.5
18	CR2330	23	3
19	BR2335	23	3.5
20	CR2354	23	5.4
21	CR2412	24.5	1.2
22	CR2430	24.5	3
23	CR2450	24.5	5
24	CR2477	24.5	7.7
25	CR3032	30	3.2
26	CR11108	11.6	10.8

Identifier names are based on IEC standards. Measurements in millimeters.

Variable Documentation

dtc_battery_button

<map> Button cell batteries data table columns map.

Definition at line 300 of file button.scad.

dtr_battery_button

<table> Button cell batteries data table rows.

Definition at line 309 of file button.scad.
