Shapes

Geometric shapes and basic constructs. More...

Collaboration diagram for Shapes:

Modules
	Basic 2d
	Basic 2D shape.
	Basic 3d
	Basic 3D shapes.
	Polygons
	Roundable polygons generated in 2D space.
	Polyhedrons db
	Sizable polyhedra generated from shape database.
	Revolutions
	Select 2D shapes revolved about the z-axis.

Files
file	basic_2d.scad
	Basic 2D shapes.
file	basic_3d.scad
	Basic 3D shapes.
file	polygon.scad
	Roundable polygons generated in 2D space.
file	revolved.scad
	Select 2D shapes revolved about the z-axis.
file	polyhedron_db.scad
	Sizable polyhedra generated from shape database.

Detailed Description

Geometric shapes and basic constructs.

Basic 2d

I	II	III
ellipse()	ellipse_c()	ellipse_cs()
IV	V	VI
ellipse_s()	ngon()	rectangle()
VII	VIII	IX
rectangle_c()	rhombus()	star2d()

Basic 3d

I	II	III
cone()	cuboid()	ellipsoid()
IV	V	VI
ellipsoid_s()	pyramid_q()	pyramid_t()
VII
star3d()

Polygons

I	II	III
pg_corner_round()	pg_elliptical_sector()	pg_ngon()
IV	V	VI
pg_rectangle()	pg_rectangle_rs()	pg_rhombus()
VII	VIII	IX
pg_trapezoid()	pg_triangle_aas()	pg_triangle_asa()
X	XI	XII
pg_triangle_ppp()	pg_triangle_sas()	pg_triangle_sss()

Revolutions

I	II	III

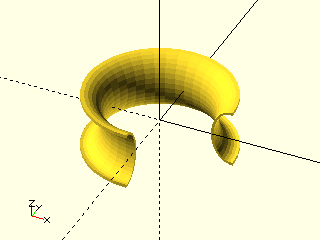

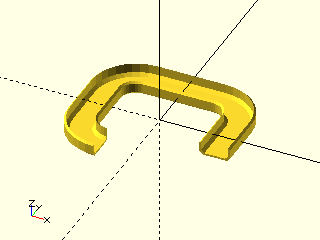

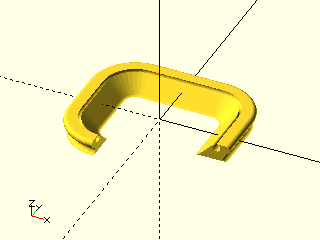

torus_ellipse_cs()	torus_pg_trapezoid()	torus_rectangle_c()
